ePropulsion E100 LiFePO4 Battery 5120 Wh 48 V

ePropulsion E100 LiFePO4 Battery 5120 Wh 48 V

€1.899,00
€1.999,00 €1.899,00
Sale Sold out
Taxes included. Shipping calculated at checkout.

In stock

EPO-EB-0100-00

The ePropulsion E100 is a powerful high-performance battery for electric boat propulsion and was specially developed for marine use. With a capacity of 5120 Wh, a nominal voltage of 51.2 V and state-of-the-art LiFePO4 technology, it offers long range, maximum reliability and an exceptionally long service life.
The E100 was developed for the latest generation of electric ePropulsion drive systems and is suitable for numerous Navy, Pod Drive, Spirit, I-Series, P-Series and X-Series drives. Thanks to its flexible system architecture, it can be used in both 48-volt systems and 96-volt applications. For this purpose, two batteries can be connected in series.

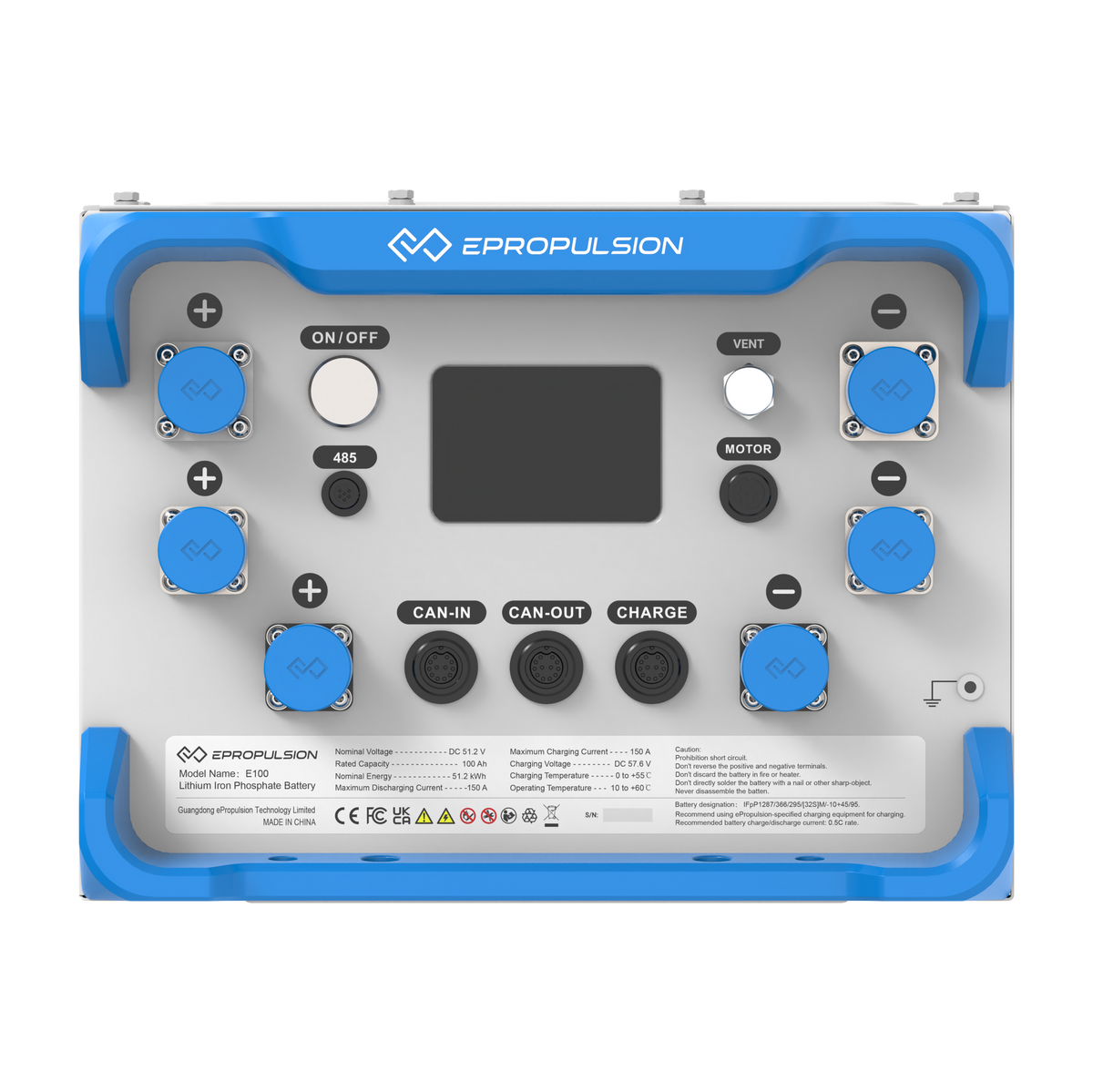

The robust metal enclosure is impact-resistant, weather-resistant and protected against water and dust to IP67. The integrated display allows real-time display of state of charge, voltage, current and alarm messages. An intelligent battery management system (BMS) ensures maximum safety.

With up to 3000 charge cycles at 80% remaining capacity, the E100 significantly exceeds the service life of conventional lead batteries and is the ideal solution for demanding electric boat applications.

Technical Data

Property Value
Battery type Lithium iron phosphate (LiFePO4)
Voltage 51.2 V
Operating voltage 48 V system
Capacity 100 Ah
Energy content 5120 Wh
Battery service life Up to 3000 cycles at 80% SOH
Max. continuous discharge current 150 A
Protection rating IP67
Weight 48.5 kg
Dimensions 630 × 320 × 240 mm
Manufacturer No. EB-0100-00
Warranty 2 years



Compatible ePropulsion Drives

48 Volt Systems

  • Spirit 1.0 Plus
  • Spirit 1.0 Evo
  • Spirit 2
  • Navy 3.0 Evo
  • Navy 6.0 Evo
  • Pod Drive 1.0 Evo
  • Pod Drive 3.0 Evo
  • Pod Drive 6.0 Evo

96 Volt Systems

  • X12
  • P12
  • Other ePropulsion 96 V systems

Product Features

  • Original ePropulsion E100 battery
  • High-performance LiFePO4 technology
  • 5120 Wh energy capacity
  • 100 Ah capacity
  • Up to 3000 charge cycles
  • Integrated battery management system
  • Real-time display of state of charge and system data
  • Impact-resistant metal enclosure
  • Waterproof to IP67
  • Suitable for 48 V and 96 V systems
  • eSSA system support
  • High energy density in a compact design

Flexible System Expansion

Configuration Option
48 V system Up to 16 batteries in parallel
96 V system 2 batteries in series
Fast charging Up to 1C charge rate

The E100 enables particularly flexible energy and range concepts for leisure and work boats.

Operational Advantages

  • Very long service life
  • Long range for electric boat propulsion
  • Robust enclosure for marine use
  • Space-saving design
  • Easy integration into existing systems
  • High operational safety thanks to an intelligent BMS
  • Ideal for leisure boats, sailboats, tenders and work boats

Notes

The battery is optimized for ePropulsion drive systems.

For maximum performance and charging speed, it is recommended to use original ePropulsion chargers and system components
