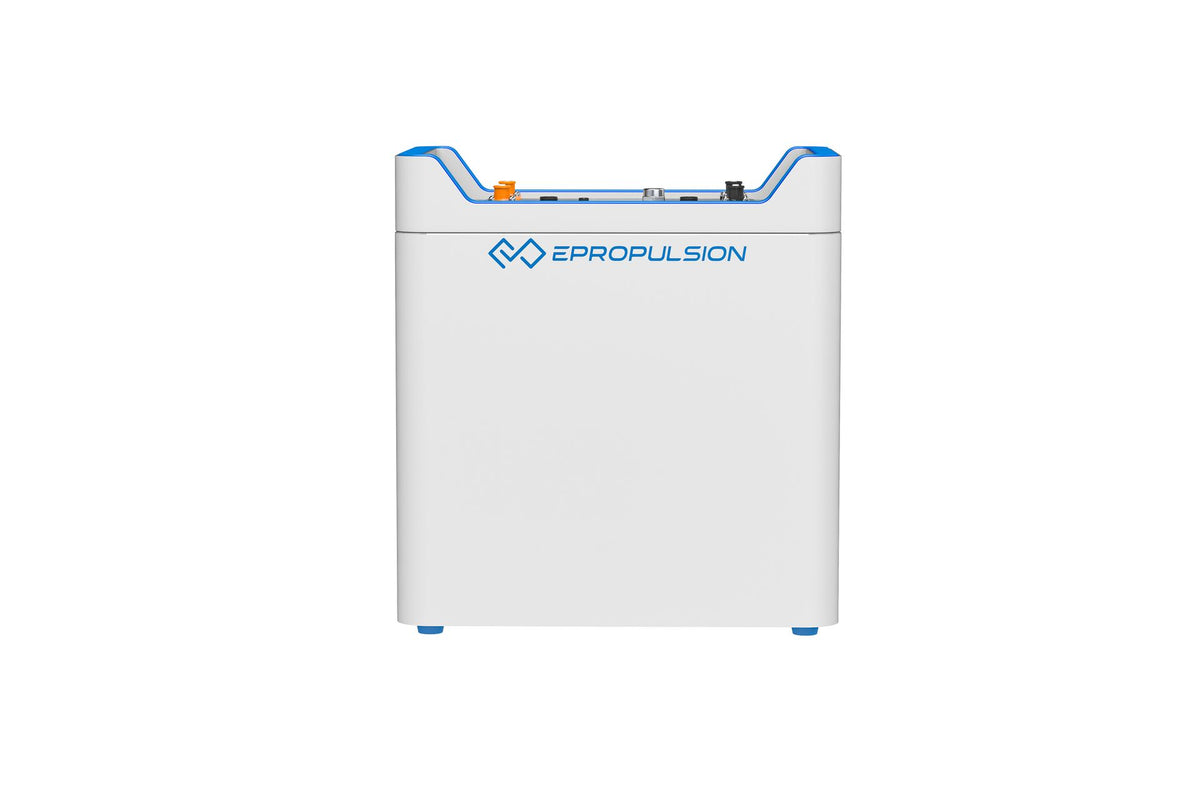

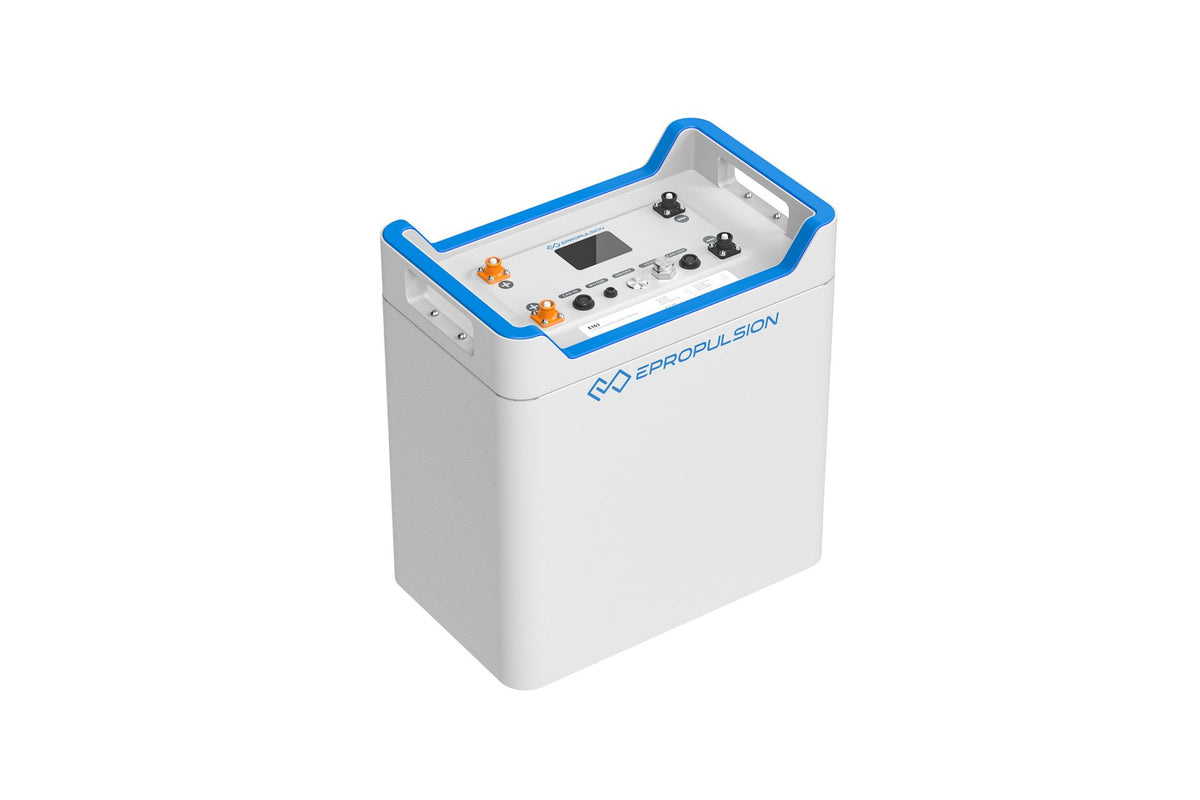

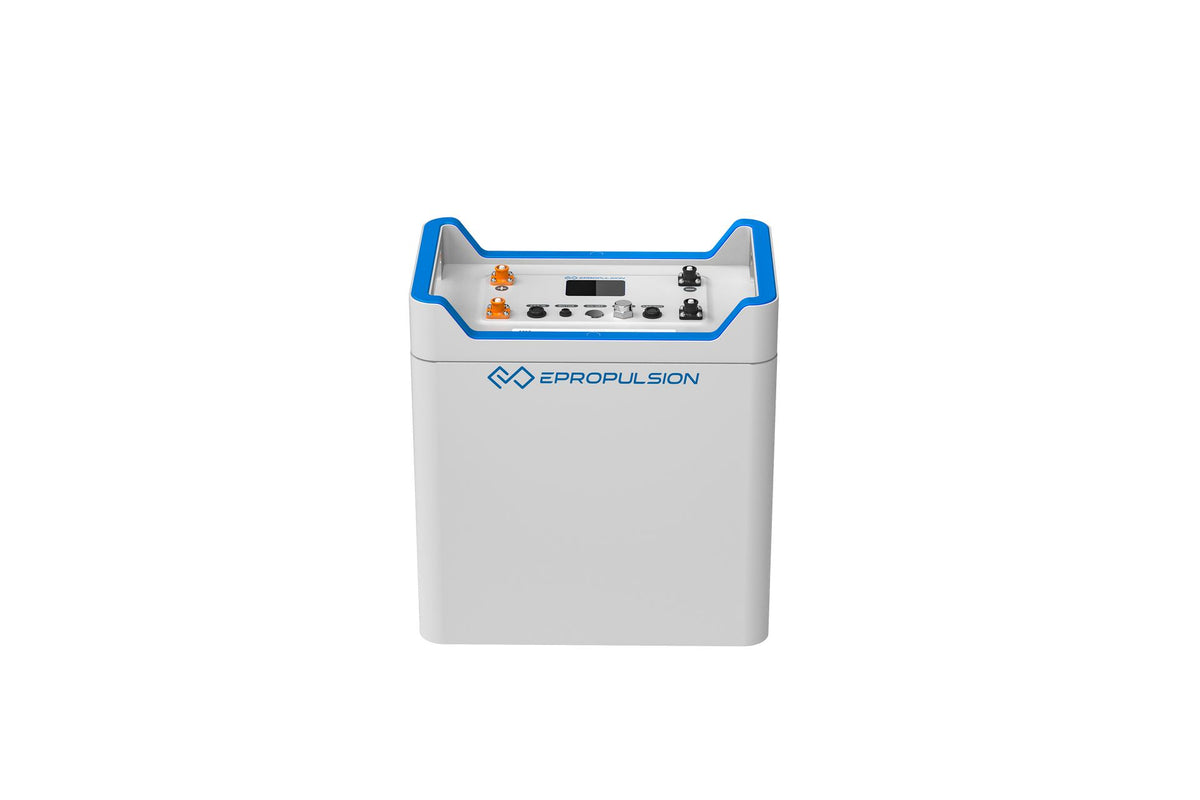

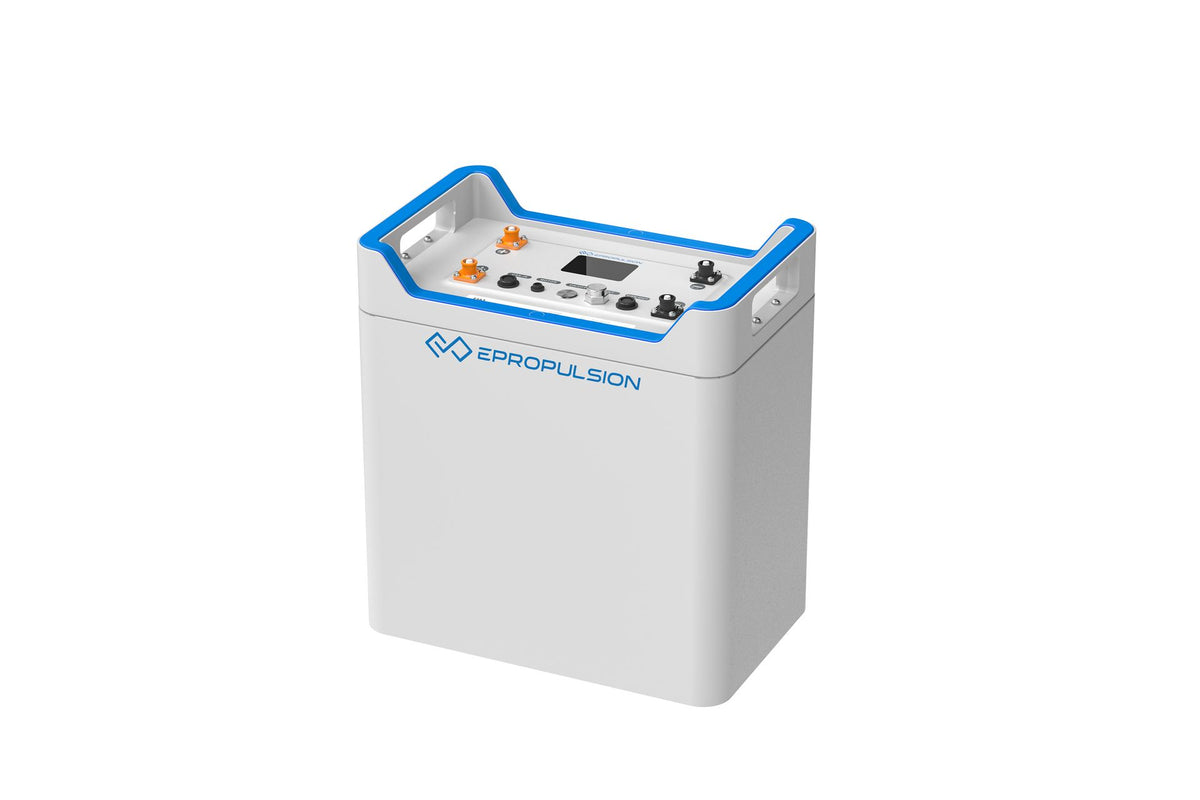

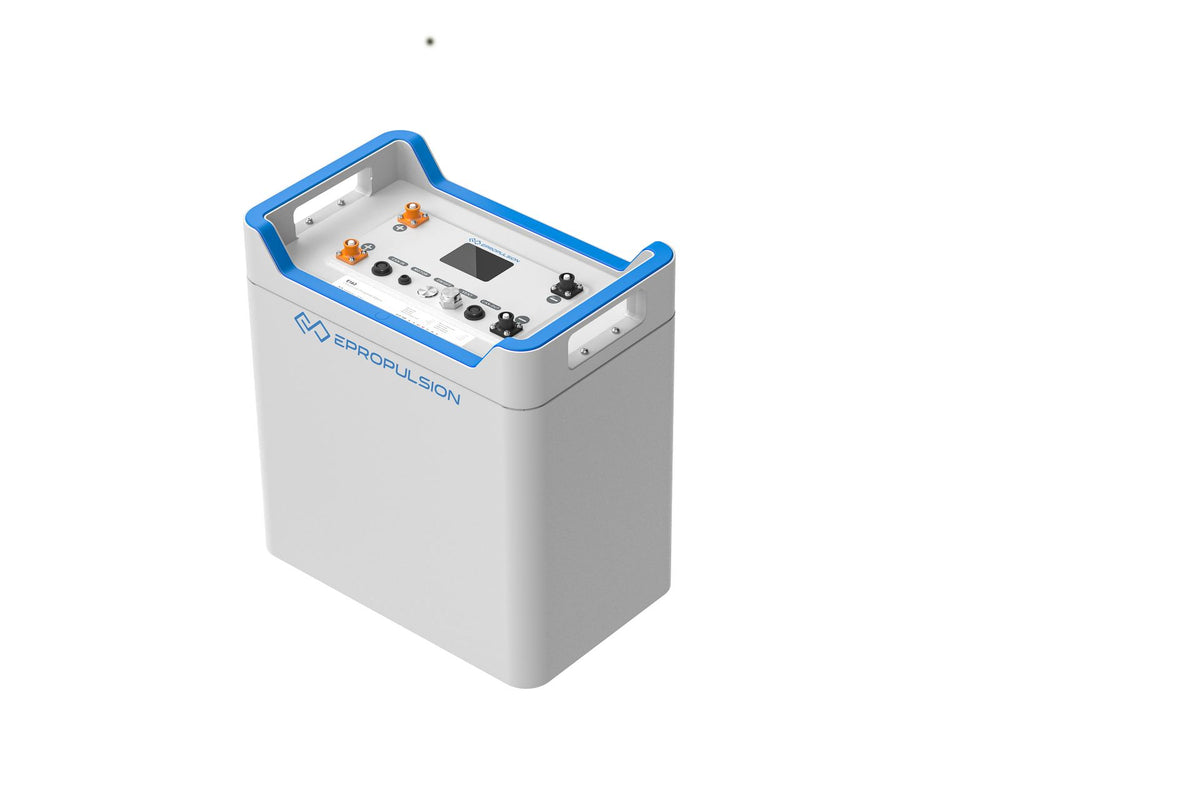

ePropulsion E163 LiFePO4 Battery 8345 Wh 48 V
ePropulsion E163 LiFePO4 Battery 8345 Wh 48 V
Regular price
€2.564,00
Regular price
€2.699,00
Sale price
€2.564,00
Taxes included.
Shipping calculated at checkout.
In stock
Quantity
Couldn't load pickup availability
SKU:EPO-EB-0163-00
The ePropulsion E163 is the most powerful battery in the proven E-Series and was specially developed for demanding electric boat drives. With a capacity of 8345 Wh and 163 Ah, it offers enormous energy reserves for long operating times, extended range, and maximum reliability on the water.
Modern lithium iron phosphate (LiFePO4) technology ensures maximum safety, a long service life, and consistently high power output. With up to 3000 charge cycles, the E163 significantly outperforms conventional lead-acid batteries and offers a sustainable solution for electric boat drives.

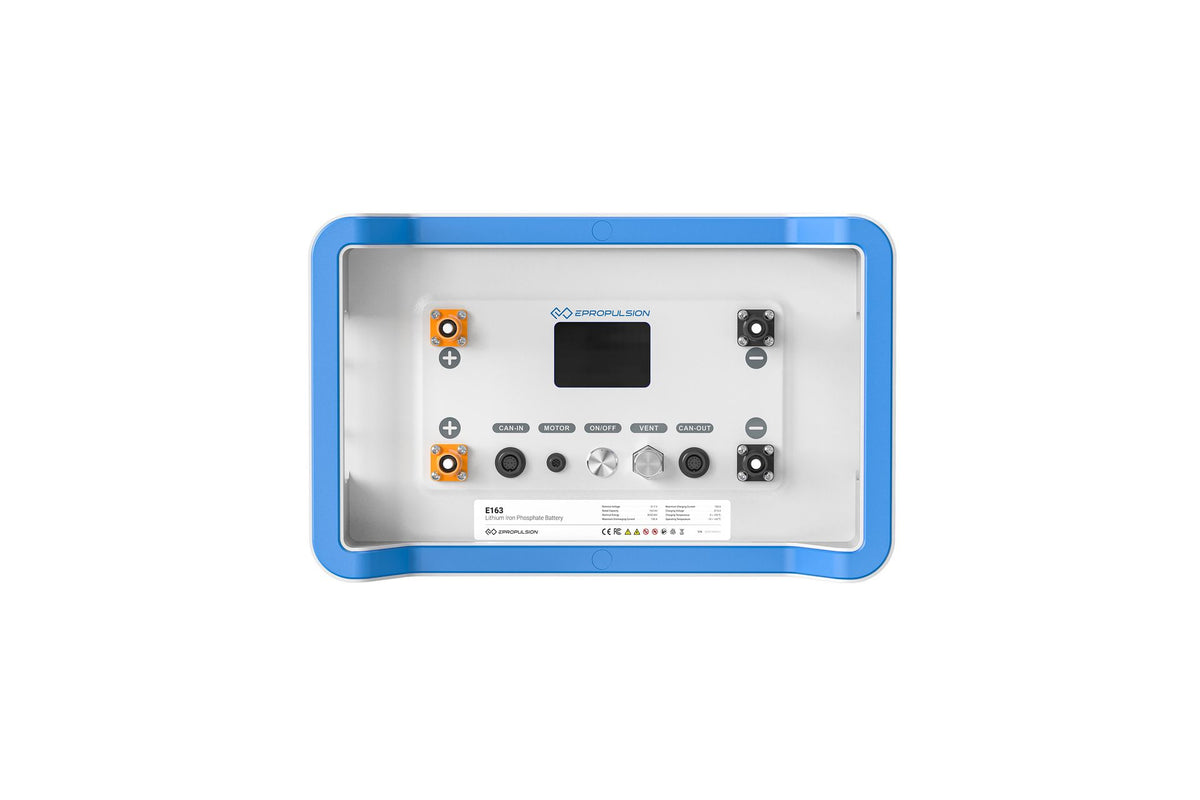

Thanks to the integrated battery management system (BMS), all relevant operating parameters are continuously monitored. The integrated display provides important real-time information such as state of charge, voltage, and power consumption. The robust all-metal enclosure is weather-resistant and protected against water and dust to IP67.
The E163 is particularly suitable for high-performance ePropulsion drives and is specially recommended by ePropulsion for use with the Navy 6.0 Evo and Pod Drive 6.0 Evo.
Technical Data
| Feature | Value |
|---|---|
| Battery type | Lithium iron phosphate (LiFePO4) |
| Nominal voltage | 51.2 V |
| Operating voltage | 48 V |
| Capacity | 163 Ah |
| Energy content | 8345 Wh |
| Battery service life | Up to 3000 charge cycles |
| Protection rating | IP67 |
| Weight | 76 kg |
| Dimensions | 470 × 295 × 495 mm |
| Manufacturer part number | EB-0163-00 |
| ePropulsion part number | 05363 |
Â
Compatible Drives
| Model | Compatibility |
|---|---|
| Spirit 1.0 Plus | Yes |
| Spirit 1.0 Evo | Yes |
| Spirit 2 | Yes |
| Navy 3.0 Evo | Yes |
| Navy 6.0 Evo | Yes |
| Pod Drive 1.0 Evo | Yes |
| Pod Drive 3.0 Evo | Yes |
| Pod Drive 6.0 Evo | Yes |
Product Features
- Original ePropulsion E163 battery
- High-quality LiFePO4 technology
- 8345 Wh energy capacity
- 163 Ah capacity
- Up to 3000 charge cycles
- Intelligent battery management system
- Integrated display for system monitoring
- Robust all-metal enclosure
- IP67 waterproof
- High energy density in a compact design
- Ideal for high-performance electric boat drives
- Original ePropulsion quality
Operational Advantages
- Very extended range for electric boat drives
- Consistent power output even under high load
- Long service life and low maintenance costs
- High operational safety thanks to the integrated BMS
- Weather-resistant and robust enclosure
- Perfect for pleasure boats, sailboats, and workboats
- Optimally matched to ePropulsion motors
Notes
The battery can only be installed upright or lying on its long side.
Recommended for ePropulsion Navy 6.0 Evo and Pod Drive 6.0 Evo drive systems.
When connecting batteries in parallel, the manufacturer's specifications must be observed.
