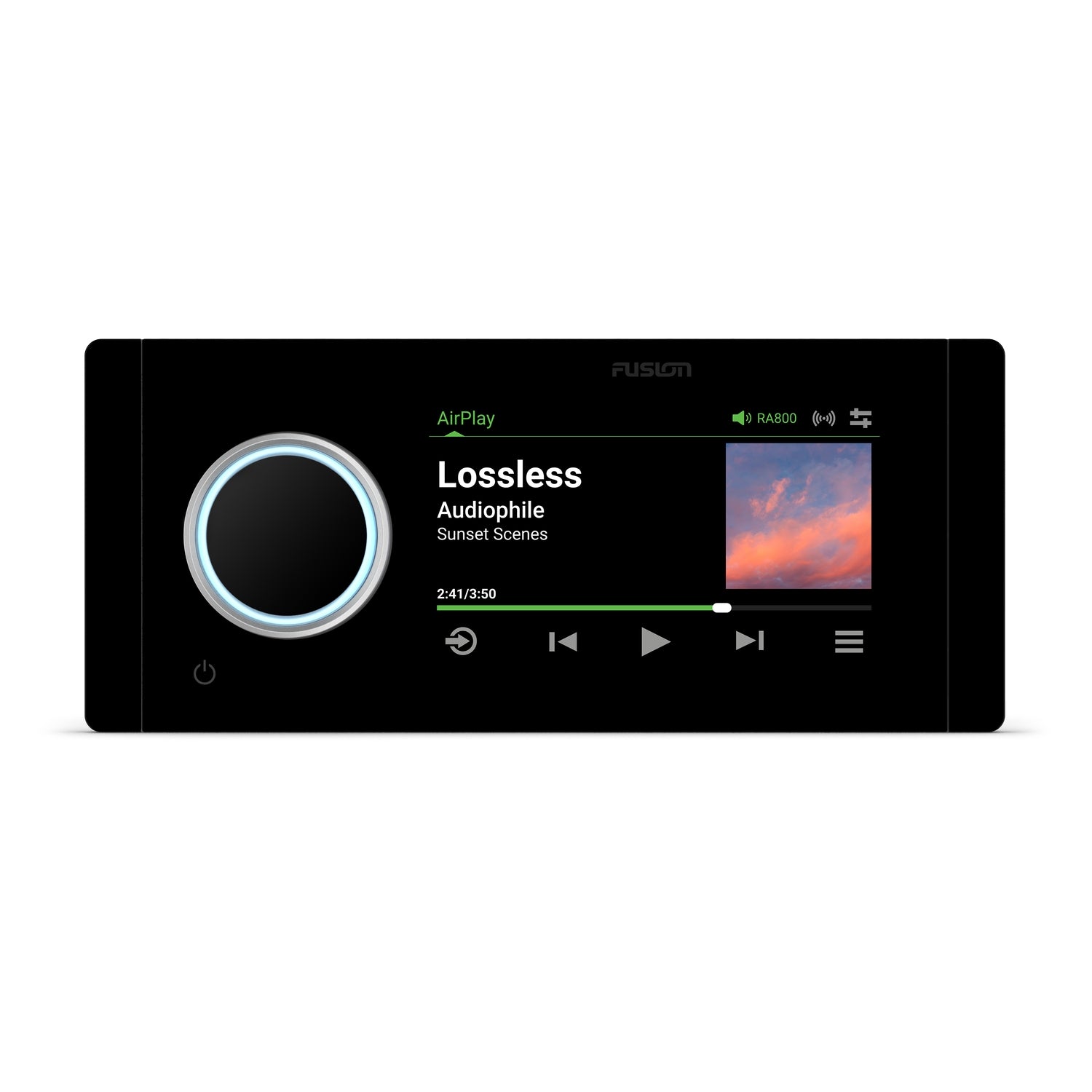

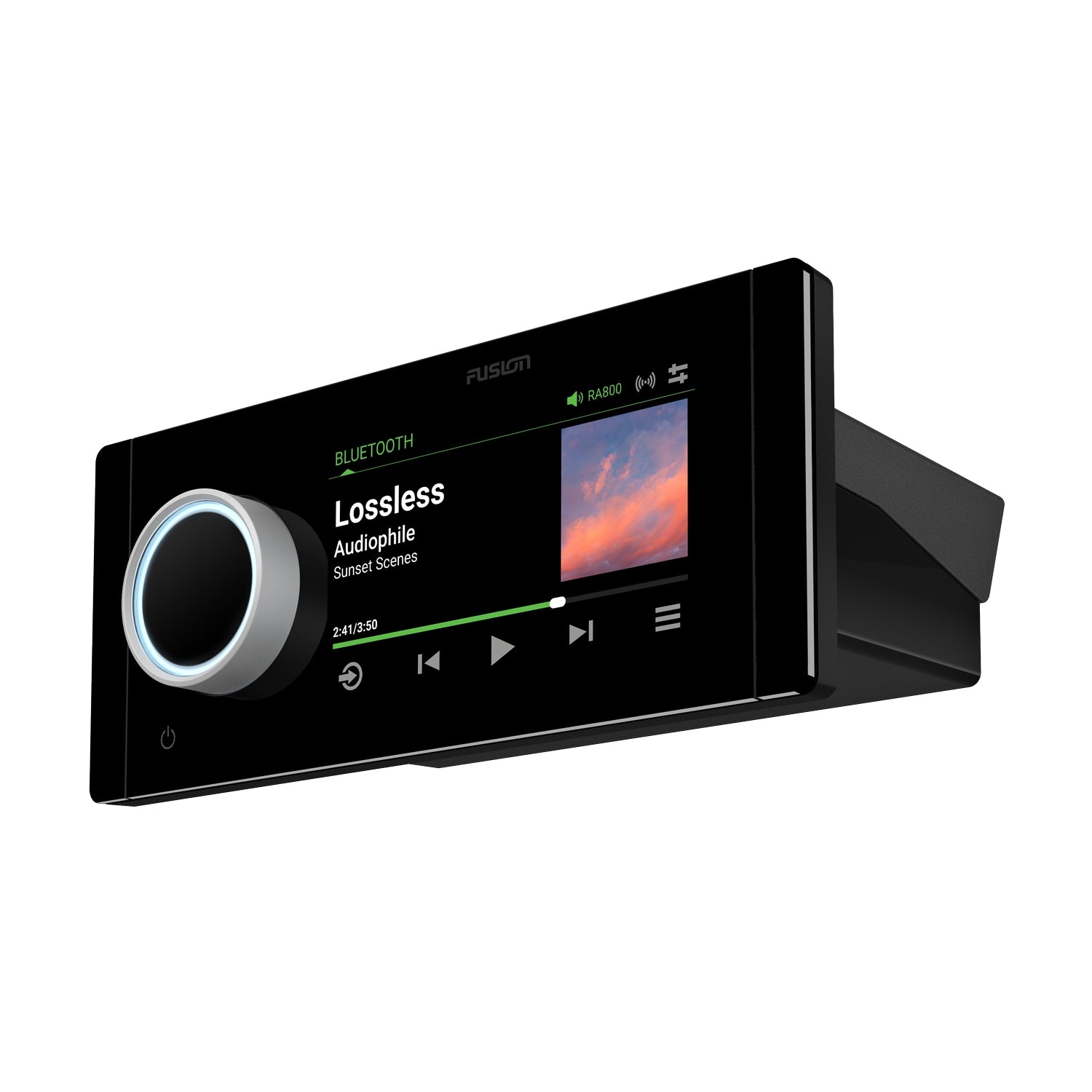

Fusion Apollo MS‑RA800 – Premium Marine Radio with 4.3" Touchscreen, DSP & AirPlay 2

The Fusion Apollo MS‑RA800 is a high‑end marine radio for discerning boat owners who want first‑class audio quality, maximum connectivity, and state‑of‑the‑art operation. Equipped with a frameless 4.3‑inch touchscreen, a powerful Class D amplifier (4 × 40 W), and Fusion DSP technology, the RA800 delivers audiophile sound – perfectly tuned to the respective listening zone on board.

The marine radio offers extensive network and streaming features: integrated Wi‑Fi with AirPlay 2 for lossless audio streaming, Bluetooth, DAB+ reception, AM/FM radio, HDMI‑ARC, USB audio, and AUX inputs. Via the Fusion PartyBus network, the RA800 can be connected to other devices to play music synchronously or by zone. The multi‑zone technology supports up to 4 audio zones.

The device is waterproof to IPX6/IPX7 (front) and IPX3 (rear), making it perfect for demanding marine use. Via NMEA2000, it can be easily integrated into existing onboard networks – including control via plotter-capable MFDs, smartphones, or Garmin wearables.

The delivery includes all cables, gaskets, screws, NMEA2000 T‑cable, protective cover, and documentation.

Technical Data – General:

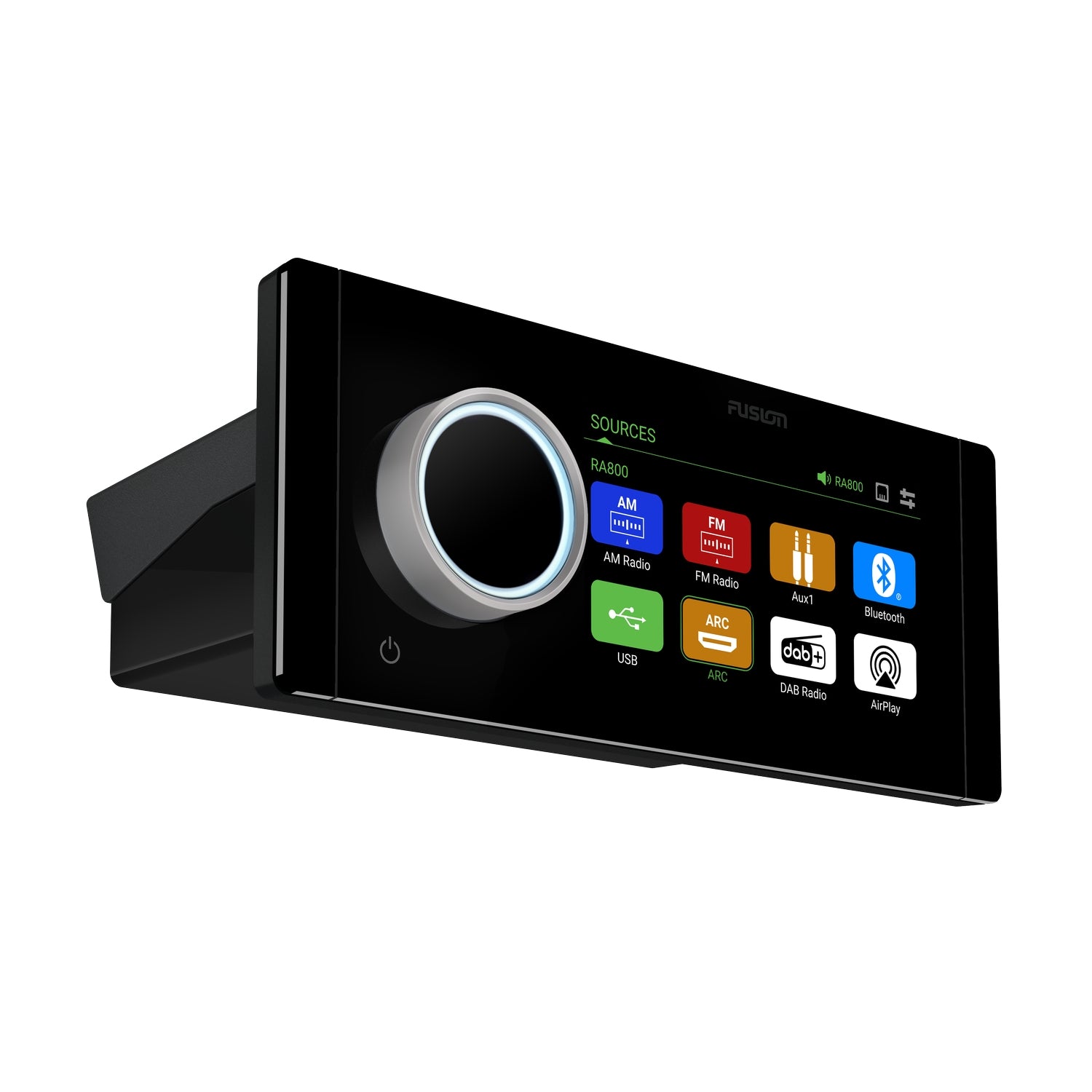

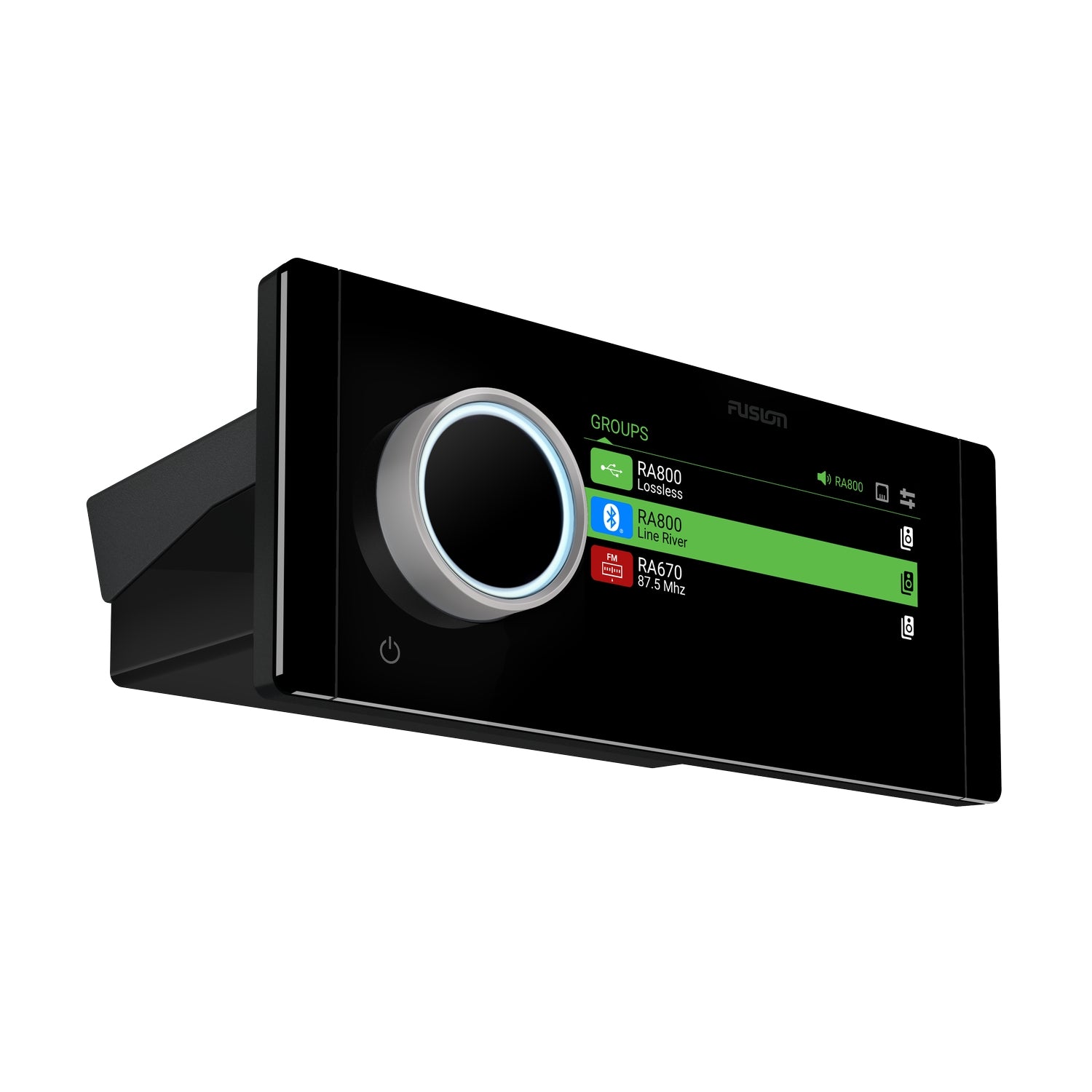

• Display: 4.3" capacitive touchscreen (800 × 480)
• Dimensions: 192 × 82 × 119.4 mm
• Weight: 620 g
• Waterproof: IPX6/IPX7 (front), IPX3 (rear)
• Amplifier: 4 × 40 W RMS (4 Ω, <1% THD)
• Supply voltage: 10.8–32 V DC
• Max. current consumption: 25 A (14.4 V) / 15 A (28.8 V)
• 3-year warranty

Network:
• NMEA2000 compatible (LEN value 2)
• 2.4 GHz Wi‑Fi, Bluetooth, ANT
• Range: Bluetooth up to 10 m, ANT up to 3 m
• OTA updates via Wi‑Fi

Audio Features / Sources:
• AM, FM, DAB+
• Bluetooth
• Apple AirPlay 2
• HDMI ARC
• USB audio (USB‑C)
• AUX × 2
• Multi‑zone: 4 zones
• DSP with custom profiles

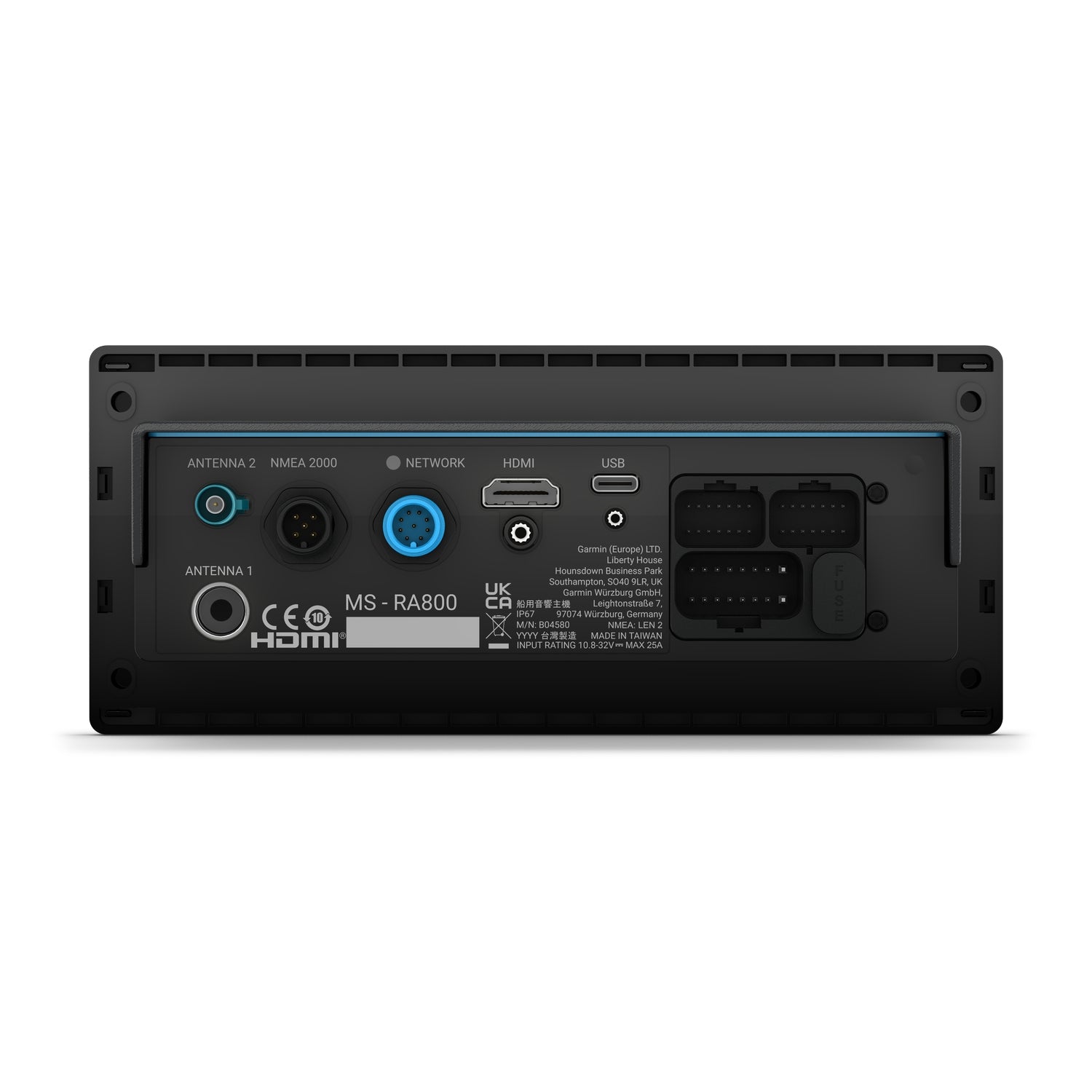

Connections:
• AUX (2× RCA)
• HDMI‑ARC: 1
• Ethernet: 1
• USB 2.0 (USB‑C): 1
• NMEA2000: 1
• Motorola antenna connector (AM/FM/DAB+)
• 4 speaker outputs (2 internally amplified zones)
• Pre‑out: 4 zones (L/R + sub per zone)
• Subwoofer output per zone

Scope of Delivery:
• Fusion Apollo MS‑RA800
• Installation gasket
• 4 self-tapping screws + covers
• Power & speaker cable harness
• AUX/Line/Sub cable harnesses
• 2-m NMEA2000 T‑cable
• Dust cover
• Documentation
