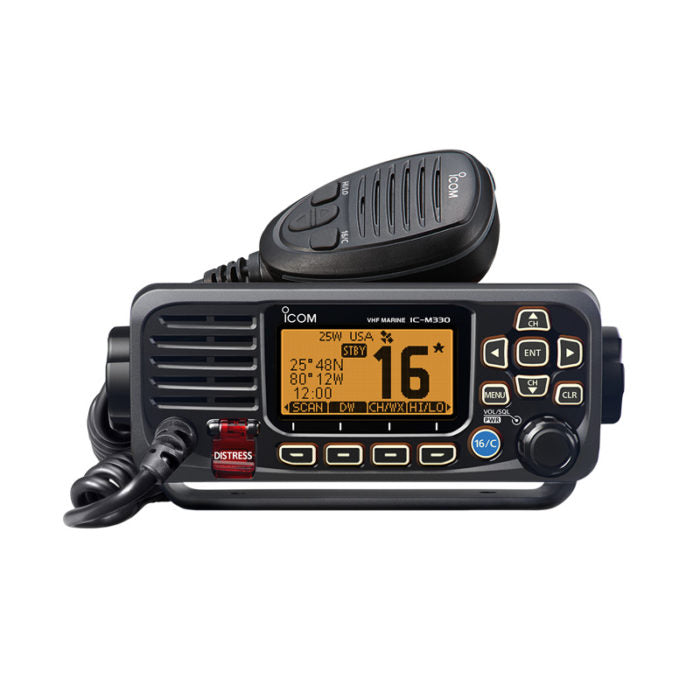

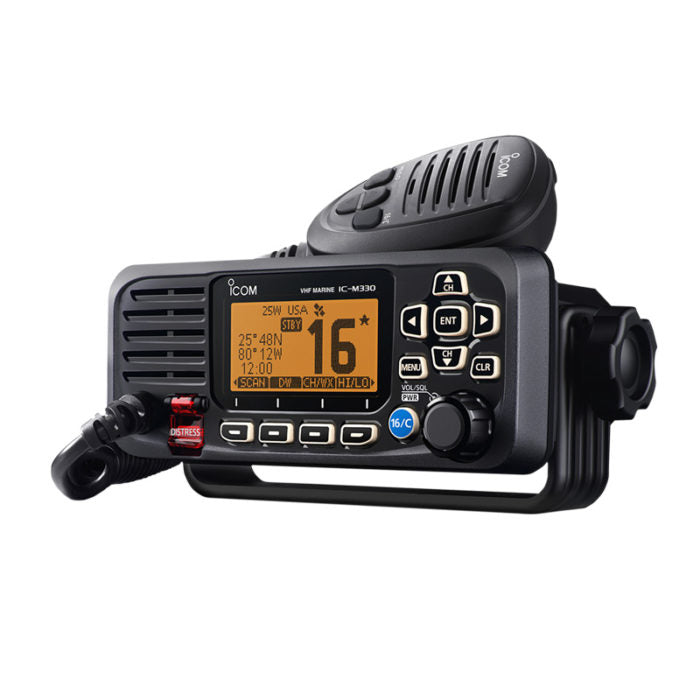

ICOM IC‑M330GE – Ultra-Compact VHF Marine Radio with DSC, GPS & IPX7

Ultra-Compact VHF Marine Radio with Outstanding Performance

The Icom IC‑M330GE is the compact entry-level model in the Icom marine radio series and impresses with easy operation, robust construction, and modern safety features. With its particularly small dimensions (156.5 × 66.5 × 110.1 mm), it is ideal for boats with limited space.

Integrated GPS, Class D DSC & High Reception Performance

The built-in GPS receiver uses GPS, GLONASS, and SBAS satellites to precisely determine position, course, and speed. This data is directly available for DSC functions.

The integrated Class D DSC unit constantly monitors channel 70 and enables:

• Distress call
• Individual & group calls
• All-ship call
• Urgency & safety calls
• Position requests & reports
• Polling requests
• DSC test calls

The device complies with ITU-R M493‑14 and is therefore future-proof in accordance with current EU requirements.

The powerful receiver offers selectivity & intermodulation > 70 dB – perfect for harbors and heavily trafficked areas.

Clear Voice Transmission Thanks to New High-Performance Speaker

The newly developed speaker delivers:

• High volume without distortion
• Great dynamics in the bass and treble ranges
• Optimal clarity even with engine noise and wind

Intuitive Operation & Flexible Mounting

The combination of softkeys and navigation buttons ensures quick, intuitive operation. Many important functions can be selected directly via a softkey.

Mounting options:

• U-shaped mounting bracket (included, top/bottom mount)
• Optional MBF‑5 for flush instrument panel installation

AIS Target Call (with MA‑500TR)

In combination with the optional MA‑500TR Class B AIS transponder, the IC‑M330GE can perform AIS target calls – without manual MMSI entry.

Additional Functions & Safety Features

• IPX7 waterproof (30 min / 1 m)
• AquaQuake™ for removing water from the speaker
• Two- & three-channel monitoring
• Favorite channel function
• Illuminated display & buttons
• NMEA‑0183 interface
• External speaker connection
• ATIS & MMSI can be programmed once by the user
• Quality manufacturing Made in Japan

Scope of Delivery

• Icom IC‑M330GE
• Hand microphone HM‑235B with UP/DOWN & CH16 button
• Mounting bracket & mounting accessories
• DC power cable
• Microphone holder
• GPS antenna (IP67, 5 m cable)
