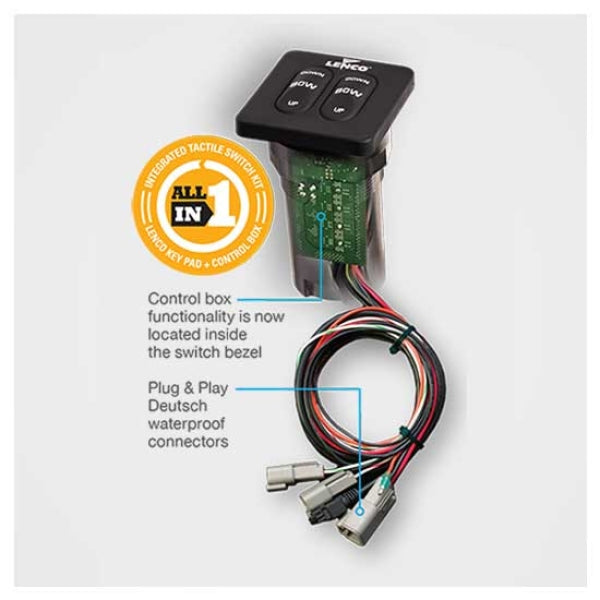

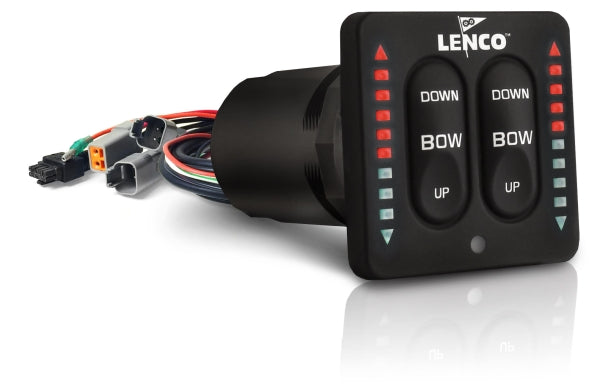

The Lenco LED trim tab switch (ALL-IN-ONE) is the most modern and precise control solution for all Lenco single-actuator trim tab systems with 12 or 24 volts. The complete control unit is integrated directly into the keypad – an external control box is no longer required.

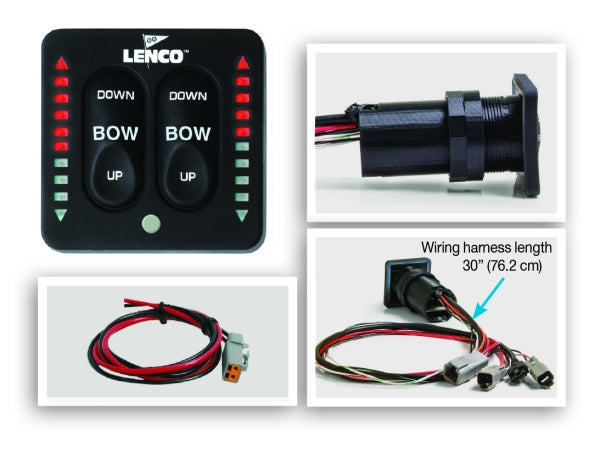

The integrated LED displays show the exact position of the trim tabs at all times. A photo-eye sensor automatically adjusts the brightness of the LEDs to the lighting conditions – ideal for day and night operation. The flat keypad is waterproof, robust, and can be quickly installed thanks to plug-and-play Deutsch connectors.
With an installation depth of just 4.08" (10.4 cm) and a standardized 2-1/16" cutout, the switch can be mounted almost anywhere. The self-testing electronics ensure particularly high reliability. As with all Lenco premium products, there is a 5-year warranty.
Features:
• For 12-V and 24-V Lenco single-actuator systems
• All-in-One design – control box integrated in the keypad
• LED position indicators for precise trim tab feedback
• Photo-eye sensor for automatic brightness adjustment
• Illuminated keypad for perfect night visibility
• Plug-and-play installation with waterproof Deutsch connectors
• Cable lengths:
– 76.2 cm from the panel
– 91.4 cm power connection cable
• Installation cutout: 2-1/16" round hole
• Panel size: 2.75" × 2.75"
• Required installation depth: 10.4 cm
• Self-testing function
• 5-year warranty
