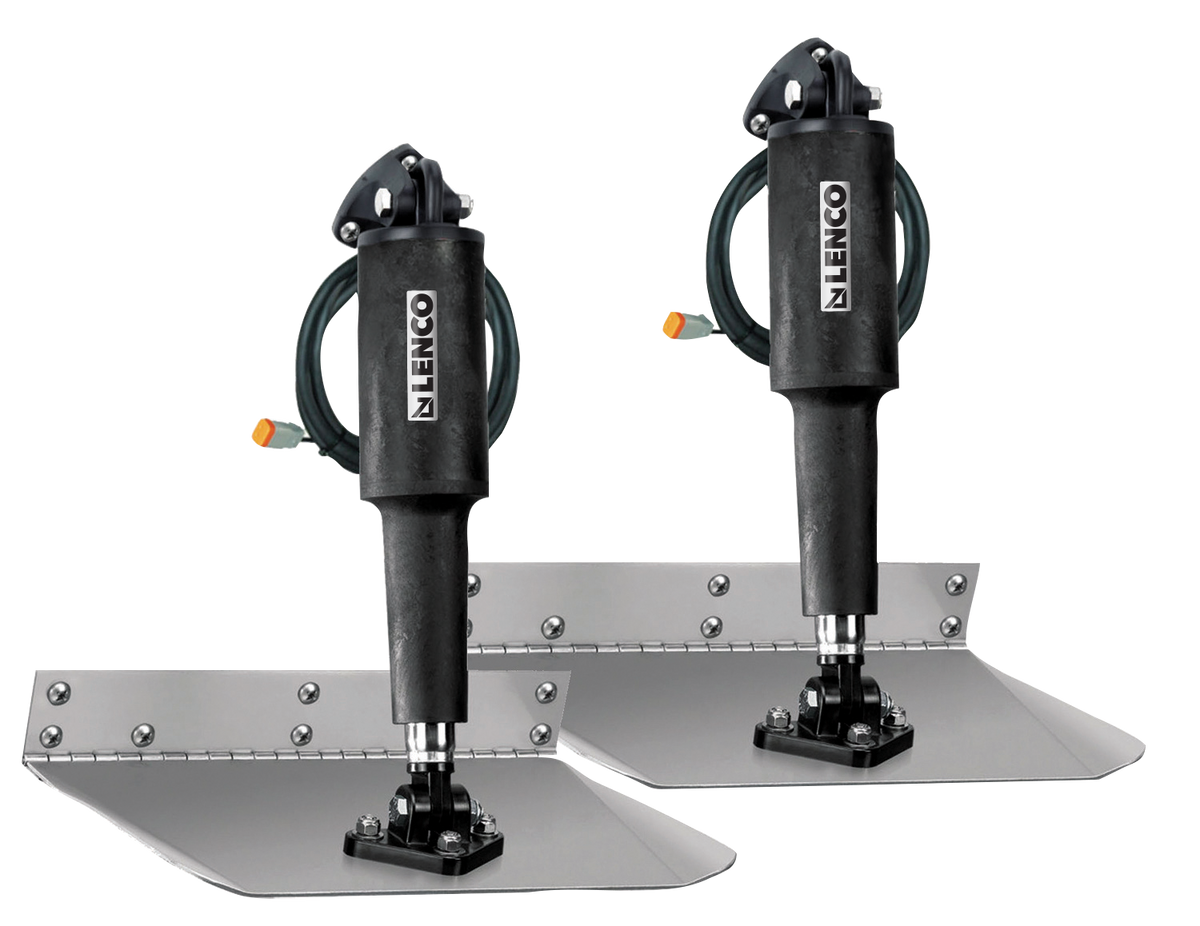

Lenco Standard Mount Trim Tab Kits – 12V Electric Trim Tabs Made of 304 Stainless Steel (Various Sizes)

The Lenco Standard Mount Trim Tab Kits are the classic choice among electric trim tabs – the system that pioneered modern electric boat technology. Ideal for a wide range of boats, from center consoles and RIBs to cabin boats. The trim tabs are made of durable 12-gauge (2.7 mm) 304 stainless steel and offer maximum strength, corrosion resistance, and excellent underwater performance.

The sharp, laser-cut edges, 5/8" (1.6 cm) folded trailing edge, and 1/8" (3.2 mm) stainless steel hinge pin ensure powerful hydrodynamics. The trim tabs use Lenco's proven 12V electric actuators – known for fast response, powerful lift, and a long service life.

All kits include upper and lower brackets made of impact-resistant, corrosion-free material, including a cable gland.

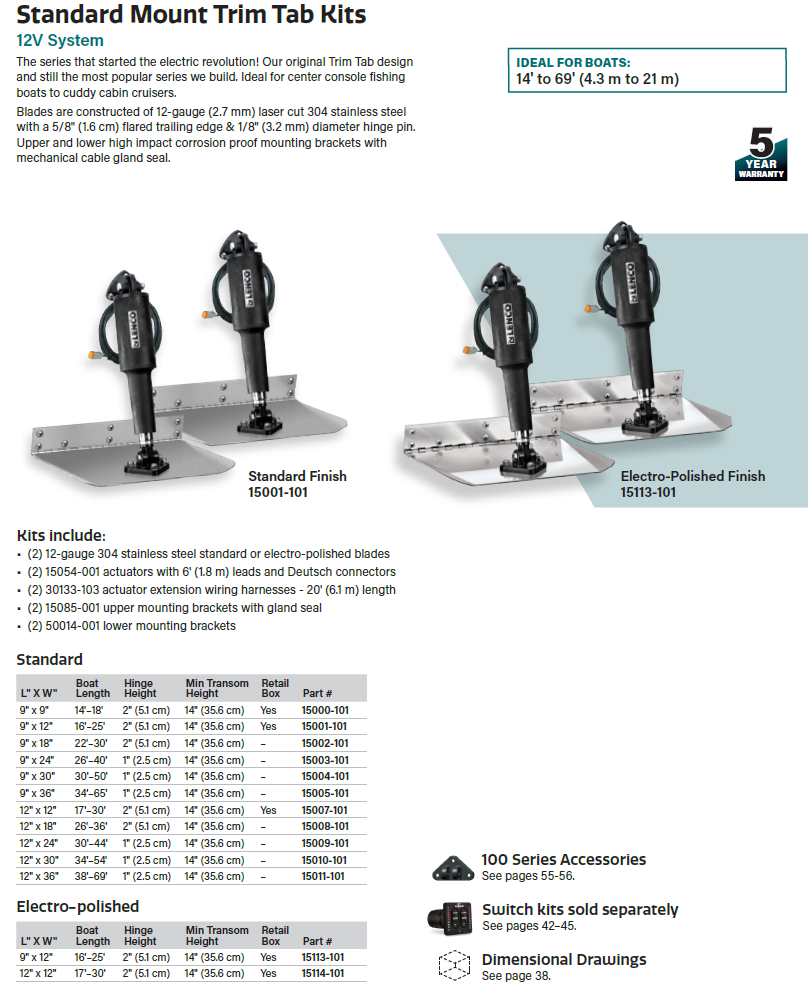

Contents of all kits:
• 2 × 12-gauge 304 stainless steel blades (standard or electropolished)
• 2 × Lenco 15054-001 actuators with 1.8 m cable & German plugs
• 2 × 30133-103 actuator extension cables (6.1 m)
• 2 × 15085-001 upper mounting brackets with cable gland
• 2 × 50014-001 lower mounting brackets

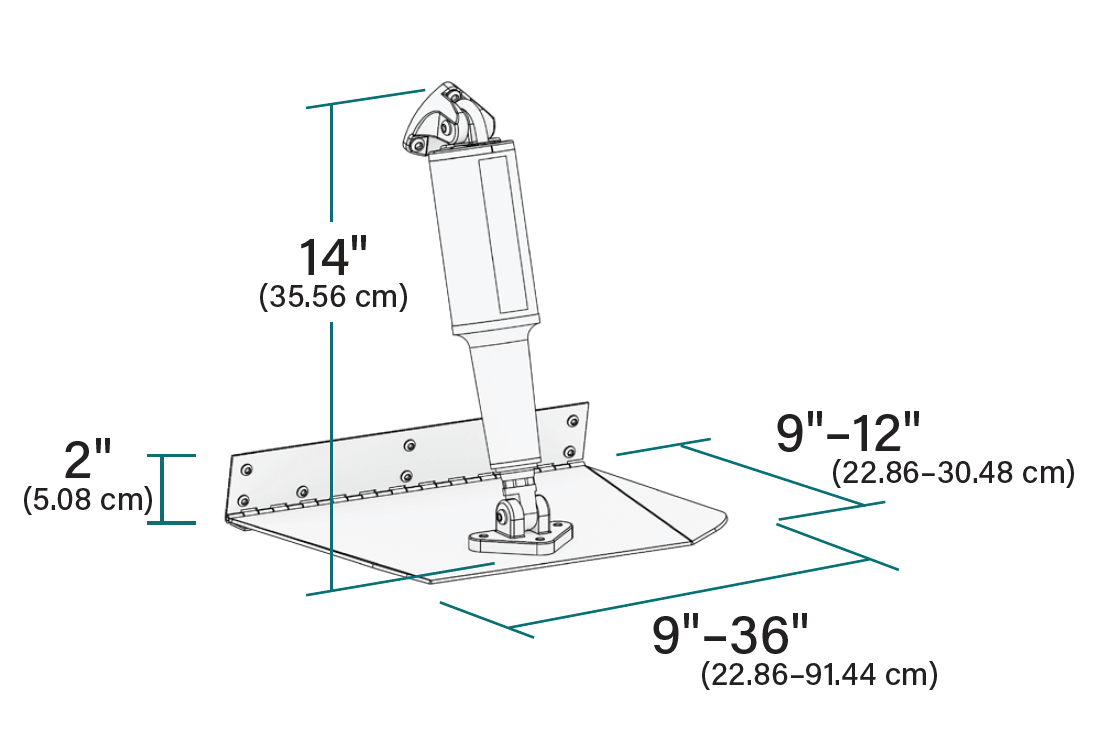

Available sizes & suitable boat lengths:

Standard width: 9" (23 cm)
• 9" × 9" – Boats 14′–18′ – Part #: 15000-101
• 9" × 12" – Boats 16′–25′ – Part #: 15001-101
• 9" × 18" – Boats 22′–30′ – Part #: 15002-101
• 9" × 24" – Boats 26′–40′ – Part #: 15003-101
• 9" × 30" – Boats 30′–50′ – Part #: 15004-101
• 9" × 36" – Boats 34′–65′ – Part #: 15005-101

Standard width: 12" (30.5 cm)
• 12" × 12" – Boats 17′–30′ – Part #: 15007-101
• 12" × 18" – Boats 26′–36′ – Part #: 15008-101
• 12" × 24" – Boats 30′–44′ – Part #: 15009-101
• 12" × 30" – Boats 34′–54′ – Part #: 15010-101
• 12" × 36" – Boats 38′–69′ – Part #: 15011-101

Technical specifications:
• System voltage: 12 V
• 304 stainless steel, 2.7 mm thick
• Laser-cut blades
• 5/8" folded trailing edge (1.6 cm)
• 1/8" hinge pin (3.2 mm)
• Corrosion-free mounting brackets
• High impact resistance
• Ideal for sport boats, center consoles, cabin boats & cruisers
