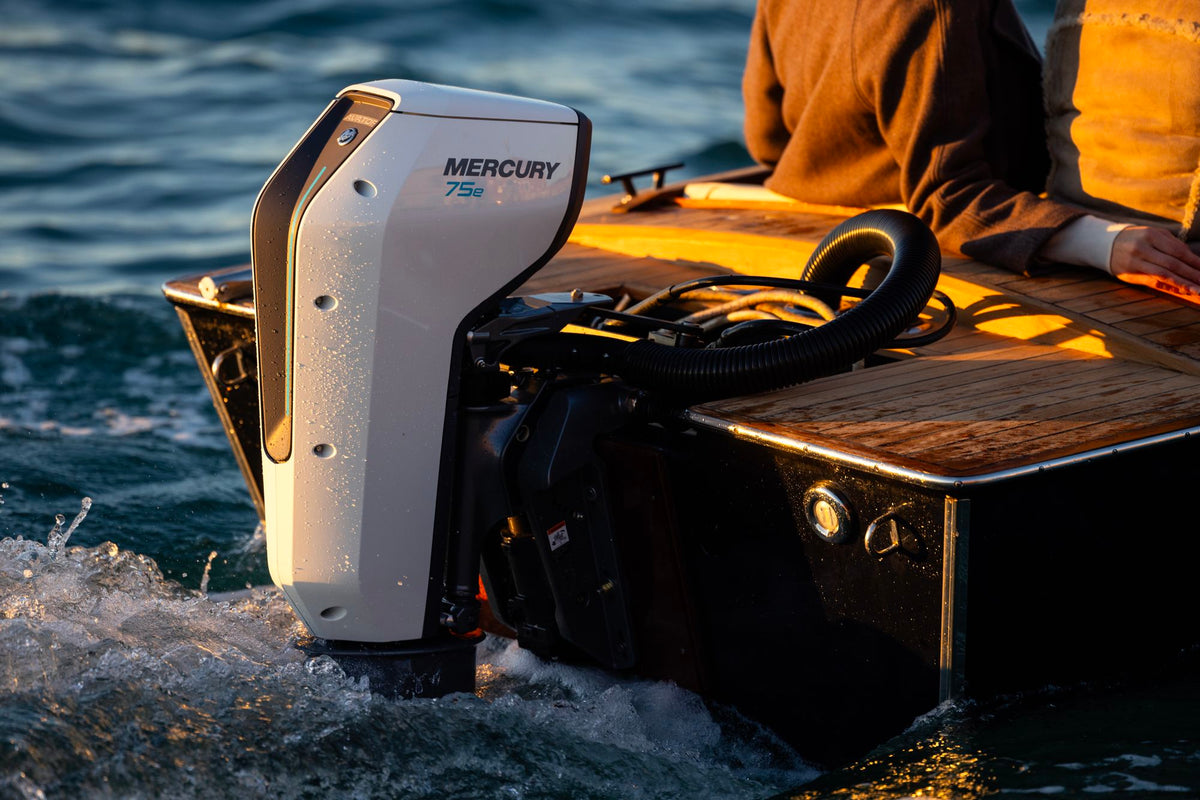

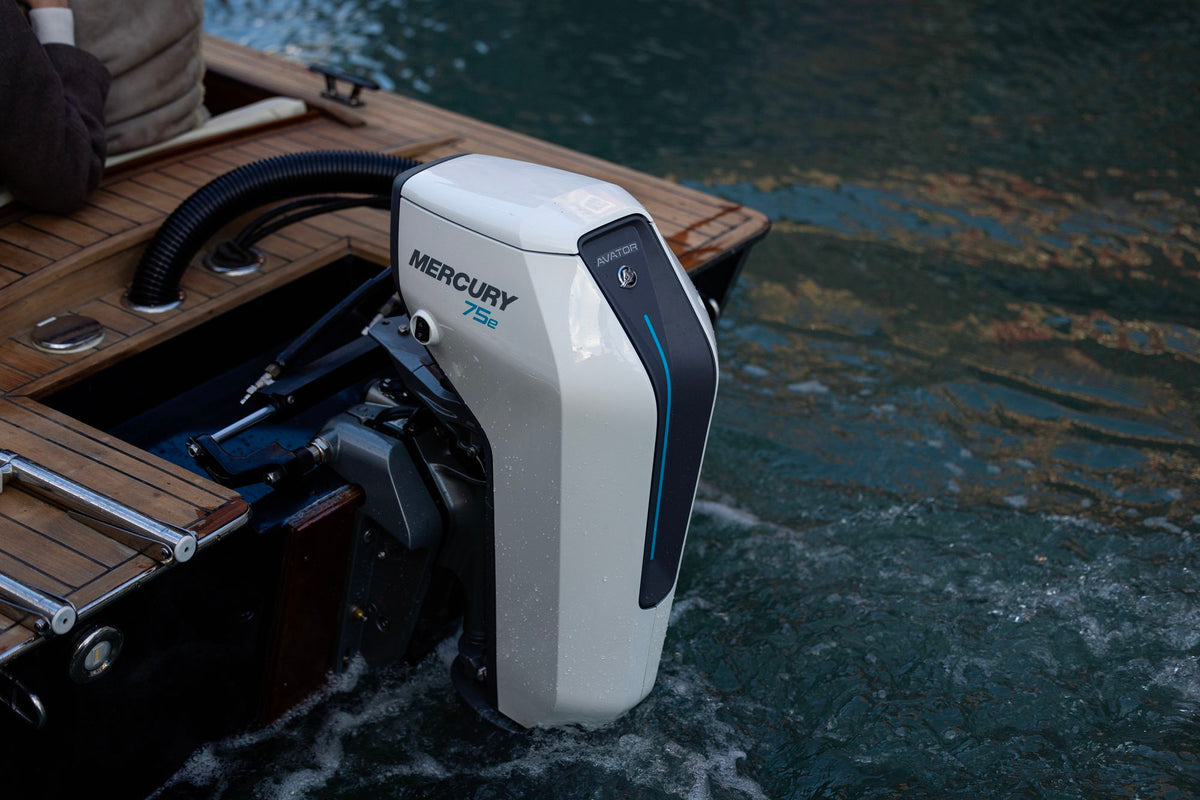

Mercury Avator 75e Electric Outboard Motor

Whether you are relaxing in the sun or chasing fish across your favorite lake – the enhanced performance of the Avator™ 75e and 110e outboards gives you the freedom to expand your horizons and deepen your adventure.

• Vibration-damping components keep your tour quiet and smooth at all times, allowing you to enjoy nature even more.
• With Avator outboards, boating becomes a high-tech recreational experience – with no exhaust fumes or direct emissions.

• Every Avator outboard is made from proven corrosion-resistant materials and coatings. Whether in fresh or salt water, you are in safe hands with an Avator.

• With no fuel, no exhaust fumes, and minimal maintenance, an Avator outboard is easy to operate, allowing you to spend all your time on the water.
• To provide more efficient overall performance, every component of the Avator propulsion system has been optimized – from the transverse-flow motor to the lithium-ion batteries.

• Thanks to their power, the Avator 75e and 110e outboards are ideal for larger and heavier boats, such as medium-sized aluminum fishing boats and pontoon boats.

Innovative features:

• The Avator™ 75e and 110e outboards can be equipped with up to four 5400 Wh batteries, which are connected for seamless integration and convenient single-point charging via the 5400 Power Center.

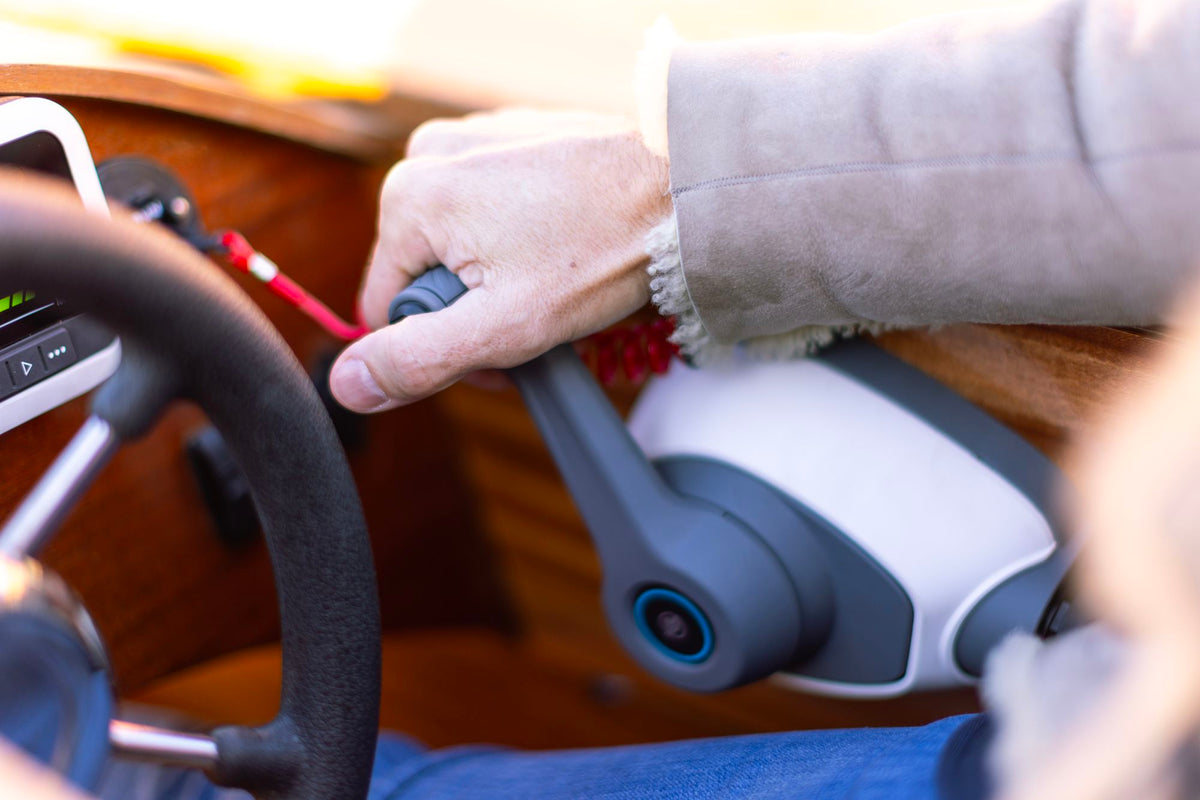

• The tiller for the Avator 75e gives drivers secure control of the boat. The tiller can be adjusted up or down from any position for convenient steering, features a built-in toggle switch and digital control, and can be folded up when not in use.
• The electric tilt system makes it easy to adjust the outboard for performance or tilt it up in shallow water. The tilt angle can be effortlessly adjusted for maximum efficiency and performance.
• The 5400 Power Center is the integrated hub that distributes power from the battery pack throughout the system. You can also use it to charge up to four connected batteries simultaneously via a single charging connection.

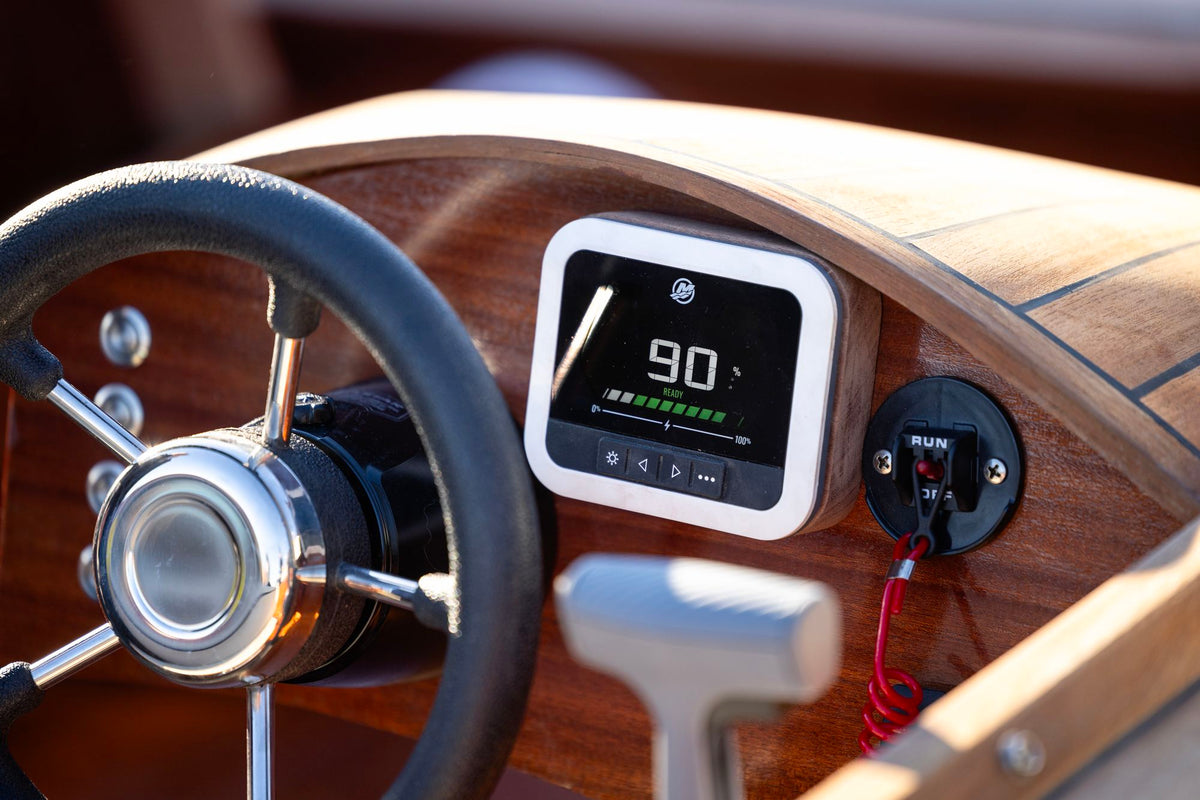

• On console boats, digital remote controls provide instant throttle response, reliable shifting, and delay-free electric tilting for easy, secure steering. The controls are available in three versions for various installation positions in the center and side consoles.
• The industry-first transverse-flow motor technology delivers instant torque and reliable, efficient performance. The motor drives a high-thrust three-blade aluminum propeller, which further optimizes battery life.

Technical specifications:

Battery protection rating: IP67
Battery weight: 42 kg / 93 lbs
Battery: 5376 Wh - LiFePO4
Charger options: 520 W; 1050 W
Input power: 8.6 kW
Rated power at the propeller shaft: 7500 W
Rated voltage: 48 V
Shaft length: 381mm, 508 mm, 635 mm
Propeller options: 8P, 9P, 10.5P
Steering: Tiller or Remote Control
Total propulsion weight: 54.5 kg / 120 lbs or 58.5 kg / 129 lbs
