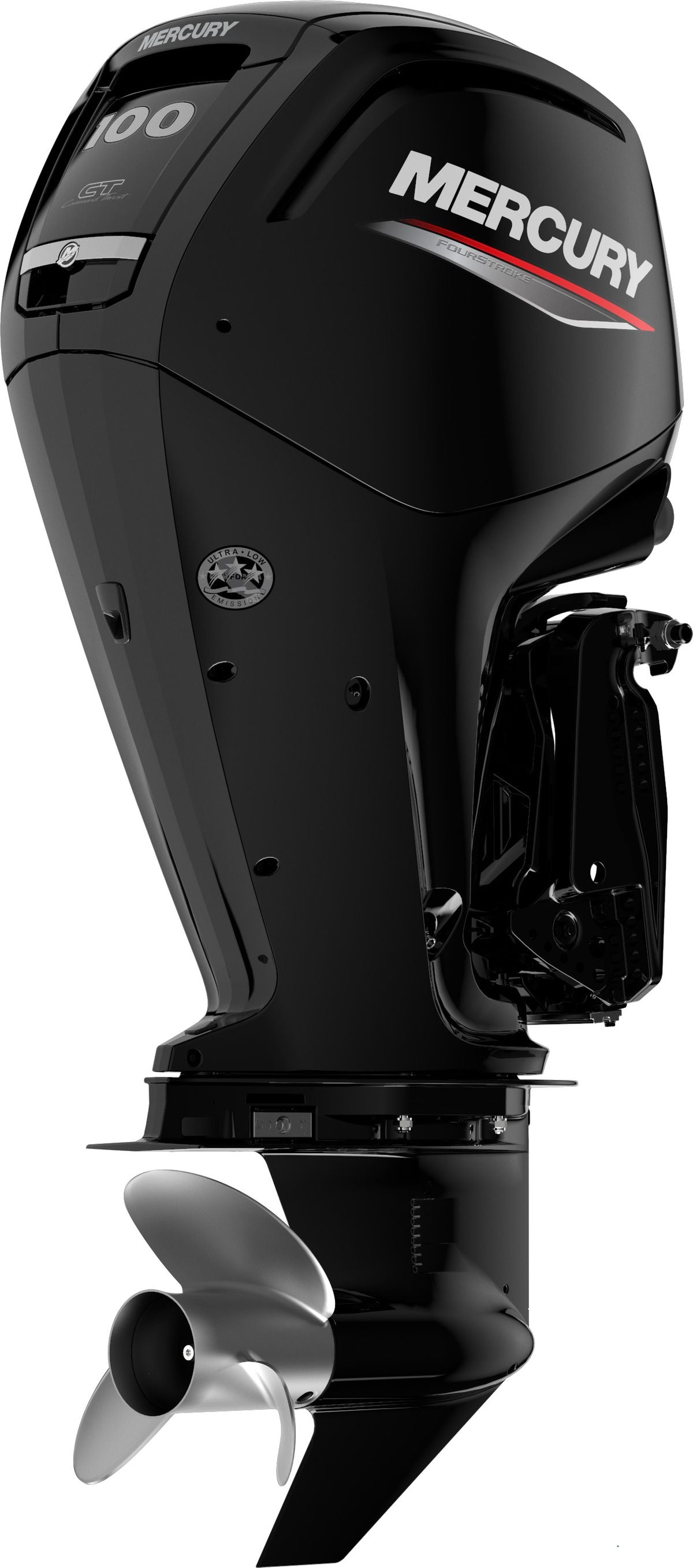

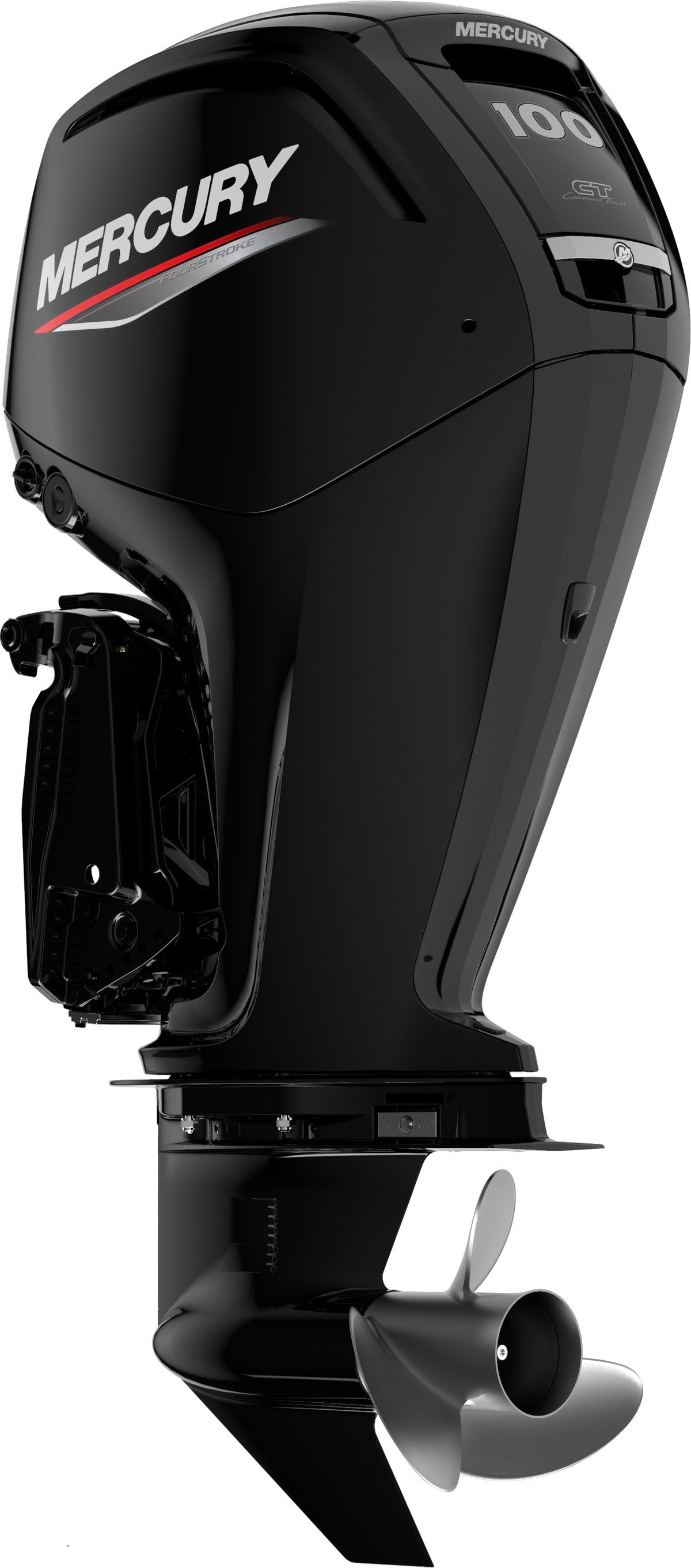

Mercury F100 EFI Outboard Motor

4-stroke (F)
73.5 kW / 100 hp
Electric start (E)
Long shaft (L)
Power trim (PT)
Center console (CT)
Electronic fuel injection (EFI)

Thanks to Mercury's relentless commitment to industry-leading innovation, you can now mount a lighter, more compact four-stroke outboard on your boat's transom that offers better performance, acceleration, and towing capabilities than the earlier F 80 to F 115 models—along with increased fuel savings, hassle-free maintenance, and rugged reliability.

Large Displacement / Less Weight
These four-stroke outboard motors have a 2.1-liter displacement, which means they work smarter—with less stress—resulting in improved reliability and a longer lifespan, not to mention greater acceleration, excellent overall acceleration, and breathtaking top speeds.

Smooth and Quiet
Noise and vibrations are minimized by the sealed, thermally linked engine cover, the end muffler, which uses an acoustic filter to reduce high-frequency exhaust noise, a new, smooth-operating clutch design, and Mercury's exclusive Focused Mount System.

Easy to Maintain
No tools are required to replace the fuel filter, and it can be done in less than a minute. And thanks to Mercury's maintenance-free valve, you do not need to perform costly valve adjustments.

Fuel Efficient
By combining less weight with a large displacement, these four-stroke outboard motors offer maximum fuel efficiency, especially at cruising speed. Special oil deflectors and bearings minimize friction on the crankshaft, which also helps reduce fuel consumption.

Technical Specifications:

kW/hp: 74 / 100
Maximum RPM at full throttle: 5000 - 6000
Cylinders: 4
SmartCraft compatible: Yes
Displacement: 2064 cc
Starting: Electric
Ignition: Digital ECM control unit
Gear ratio: 2.07:1 or 2.38:1 (CT)
Gear shift: F-N-R
Steering: Remote control (pin optional)
Alternator: 35A (441W)
Trim positions: Electrohydraulic PowerTrim and tilt
Shallow water trim range: 20°
Maximum trim range: 22° (-6° to 16°)
Maximum tilt angle: 70° (-6° to 64°)
Fuel tank: optional
Recommended fuel: UL95R (up to 10% ethanol) / 90RON compatible
Fuel induction system: Computer-controlled, electronic multi-port fuel injection (EFI)
Weight: 163kg or 165kg (CT)
Shaft length: L (508mm) or XL (635mm)
Counter-rotating gear: Not available
Recommended oil: Mercury 4-stroke oil 10W-30
Oil capacity: 5.2l
Engine protection boat switch warning system: SmartCraft Engine Guardian
Bore and stroke: 90 x 81 mm
Cooling system: Water-cooled with thermostat
Gearcase options: Standard
Exhaust system: Through propeller
Lubrication system: Wet sump
Color: Phantom Black
