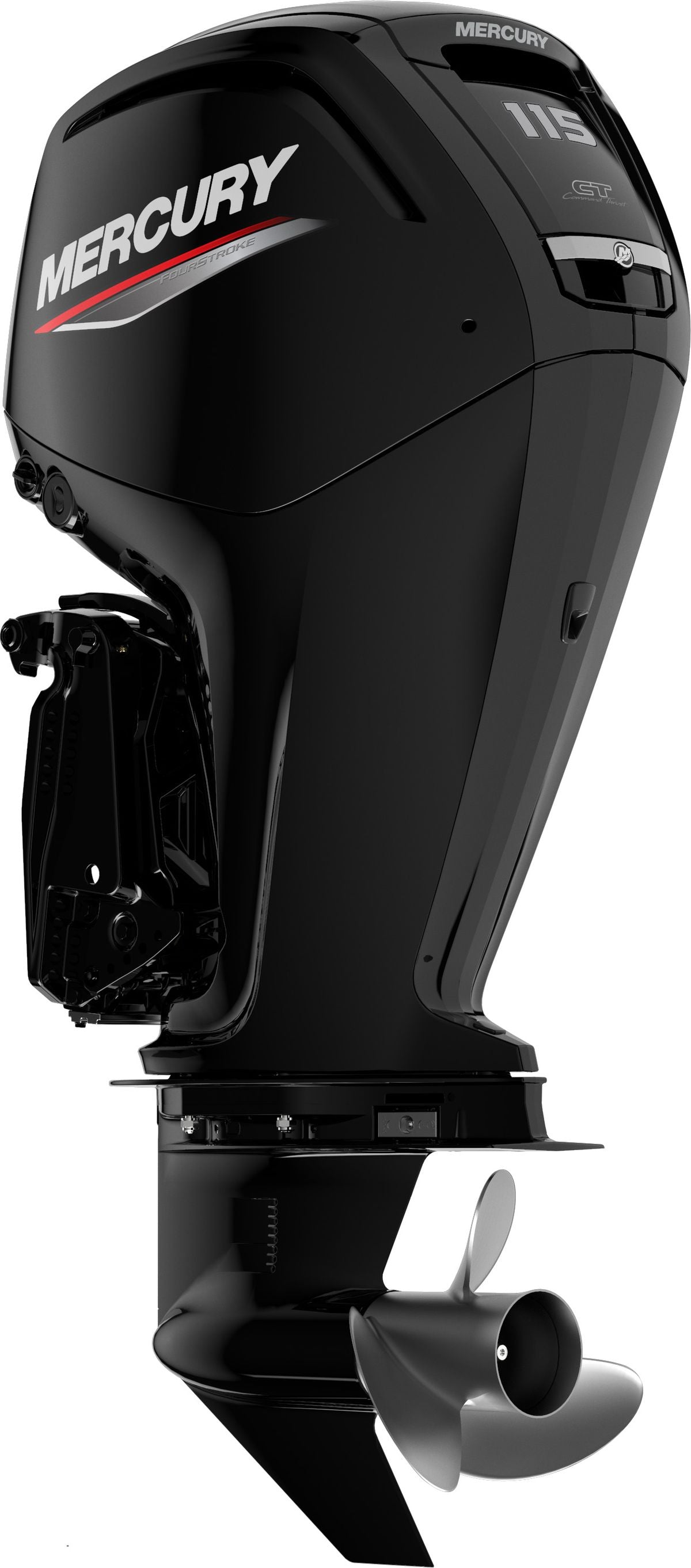

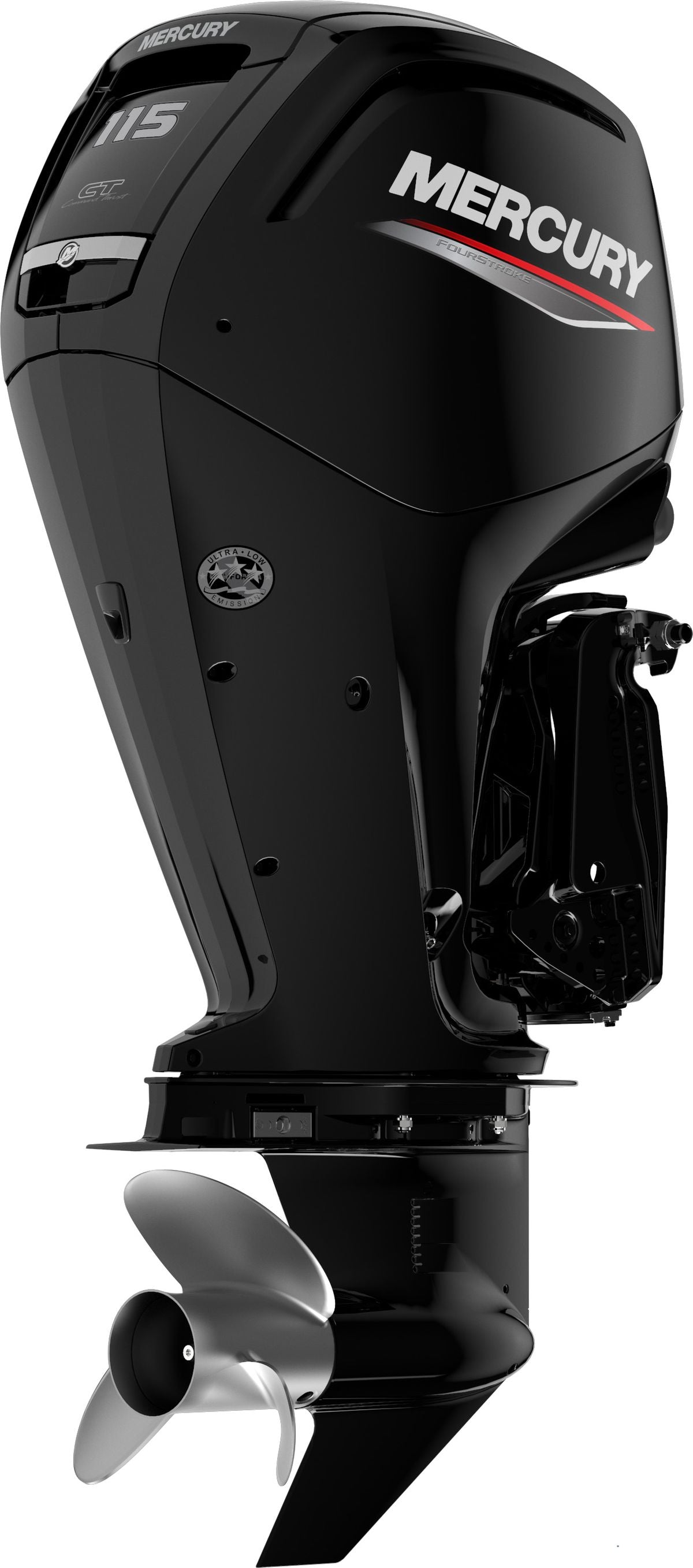

Mercury F115 EFI Outboard Motor

4-stroke (F)
84.6 kW / 115 hp
Electric start (E)
Counter-rotating gear for multiple-engine setups (C)
Long shaft (L), extra-long shaft (XL)
Power trim (PT)
Thrust gear (CT)
Electronic fuel injection (EFI)

Thanks to Mercury's never-ending commitment to providing industry-leading innovation, you can now mount a lighter, more compact four-stroke outboard on your boat's transom that offers better performance, starting acceleration, and towing capabilities than the earlier F 80 to F 115 models – along with increased fuel savings, hassle-free maintenance, and rugged reliability.

Large Displacement / Less Weight
These four-stroke outboard motors have a displacement of 2.1 liters, which means they work smarter – with less stress – leading to improved reliability and a longer lifespan, not to mention greater starting acceleration, excellent overall acceleration, and breathtaking top speeds.

Smooth and Quiet
Noise and vibrations are minimized by the sealed, thermally linked engine cover, the end muffler, which uses an acoustic filter to reduce high-frequency exhaust noise, a new, smooth-running clutch design, and Mercury's exclusive Focused Mount System.

Easy to Maintain
No tools are required to replace the fuel filter, and it can be done in less than a minute. Thanks to Mercury's maintenance-free valve, you do not need to perform costly valve adjustments.

Fuel Efficient
With less weight combined with large displacement, these four-stroke outboard motors offer maximum fuel efficiency, especially at cruising speed. Special oil deflectors and bearings minimize friction on the crankshaft, which also helps reduce fuel consumption.

Technical Data:
Power: 85kW / 115hp
Cylinders: 4, overhead camshaft with 8 valves (SOHC)
Displacement: 2100cc
RPM at full throttle: 5000-6000 rpm
Air intake: High-performance scroll intake manifold
Fuel intake system: Computer-controlled, electronic multi-port fuel injection (EFI)
Alternator: 35 Amps / 441 Watts with water-cooled voltage regulator
Recommended fuel: At least 90 RON unleaded
Recommended oil: Mercury 4-stroke oil 10W-30
Oil capacity: 5.2l
Lubrication system: Integrated dry sump lubrication
Engine protection boat guide warning system: SmartCraft Engine Guardian
Compatible with SmartCraft digital technology: Yes
Starting: Smart ignition electronics
Control: Mechanical throttle and clutch
Steering: Hydraulic power steering, compatible with large pins, mechanical dual cable
Shaft length: L, XL
Gear ratio: 2.07:1
Dry weight: 161kg
Bore and stroke: 90mm x 81mm
Ignition: ECM Digital control unit
Cooling system: Water-cooled with thermostat
Transmission: F-N-R
Gearbox housing options: Standard
Exhaust system: Through propeller
Trim system: Tilt range, PowerTrim
Shallow water trim range: 20 degrees
Maximum trim range: 22 degrees (-6 degrees to 16 degrees)
Maximum tilt angle: 70 degrees (-6 degrees to 64 degrees)
