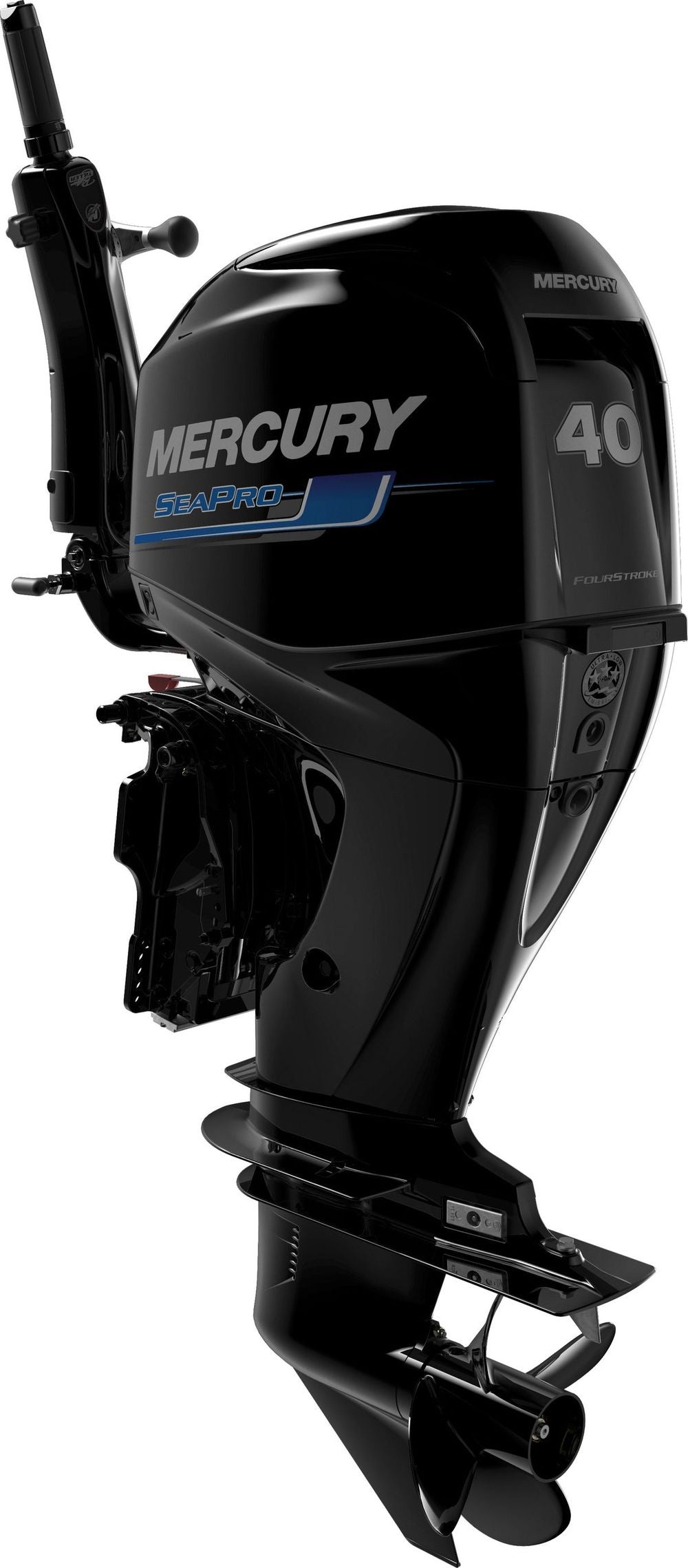

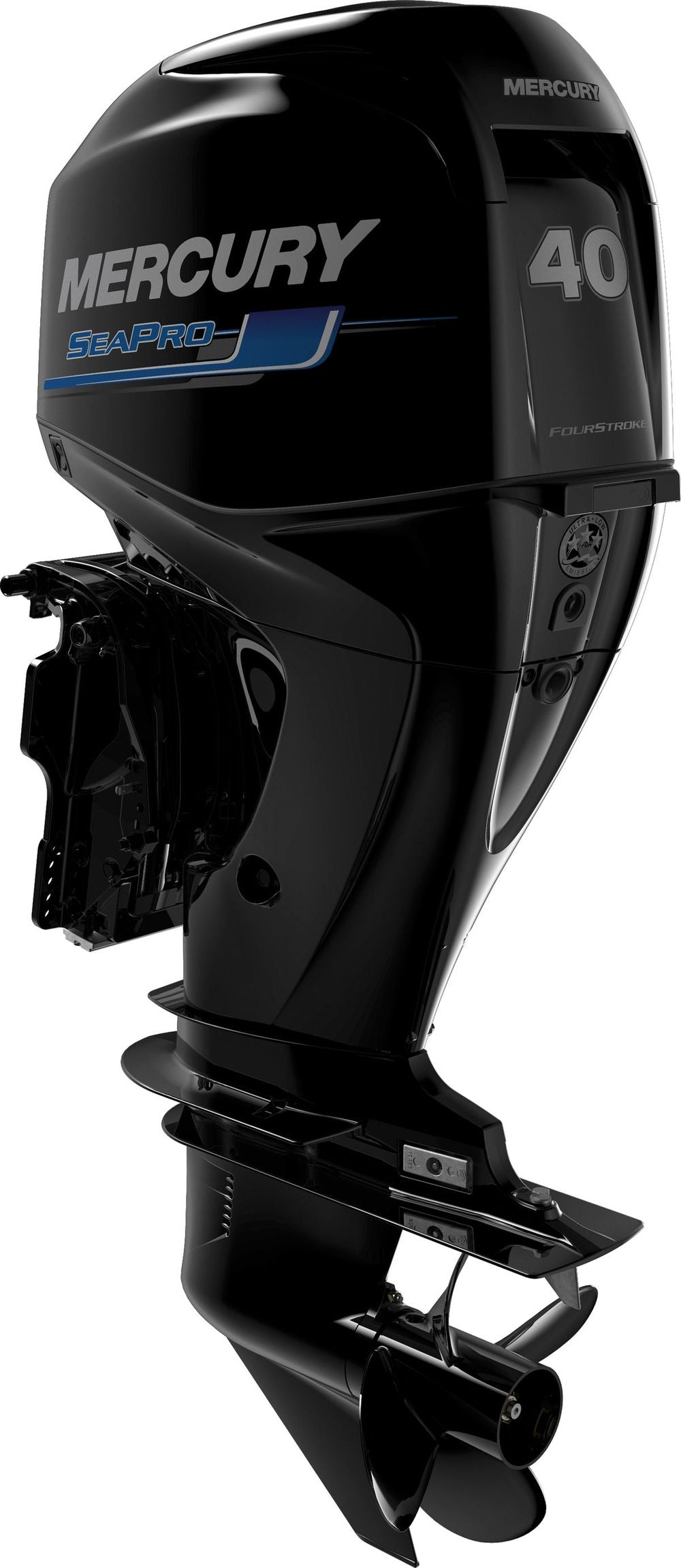

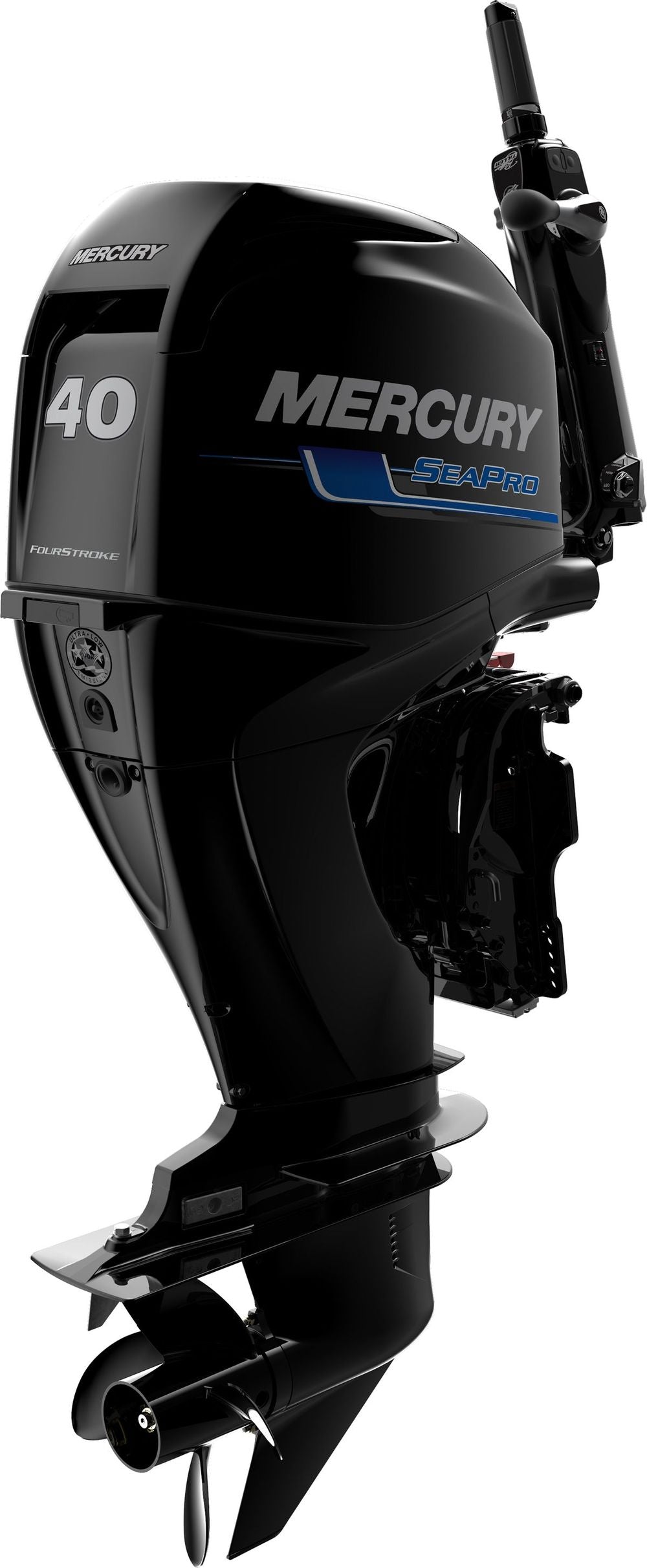

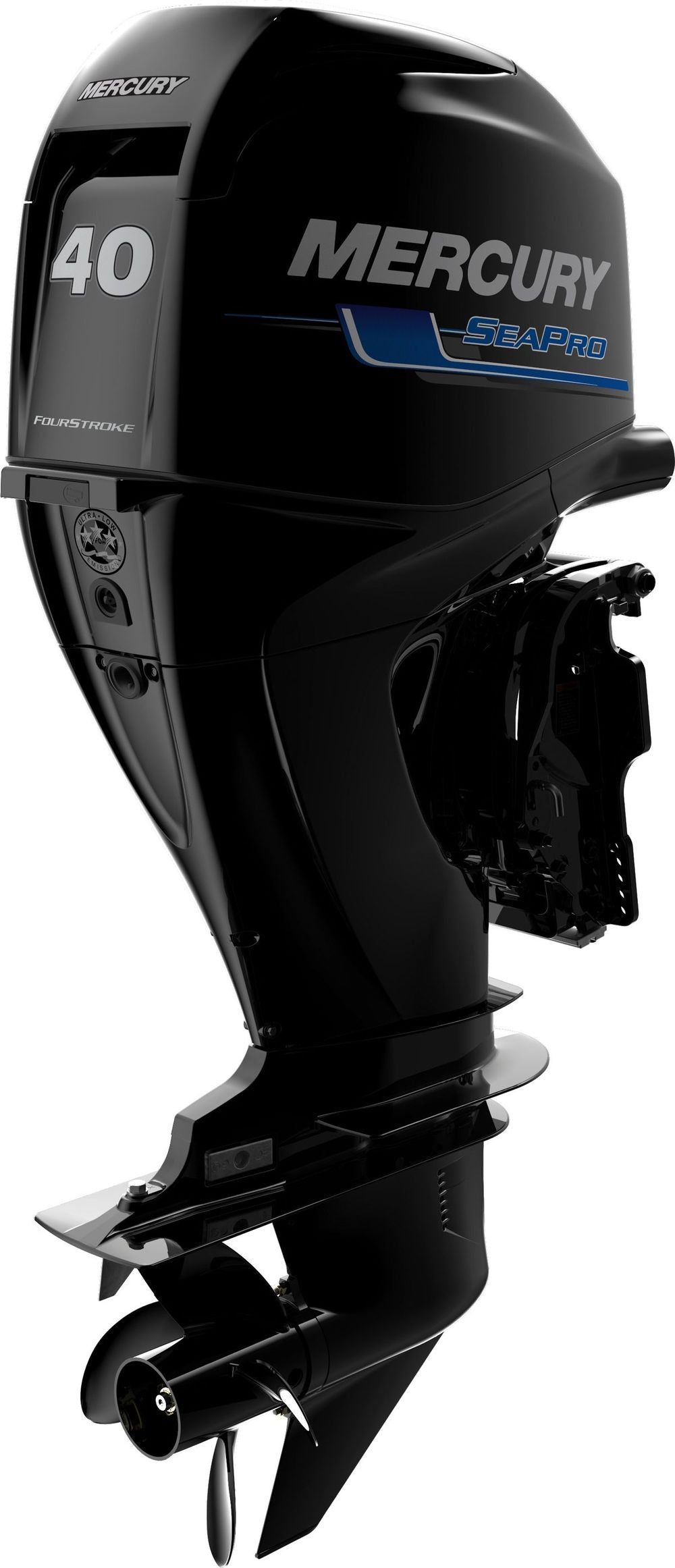

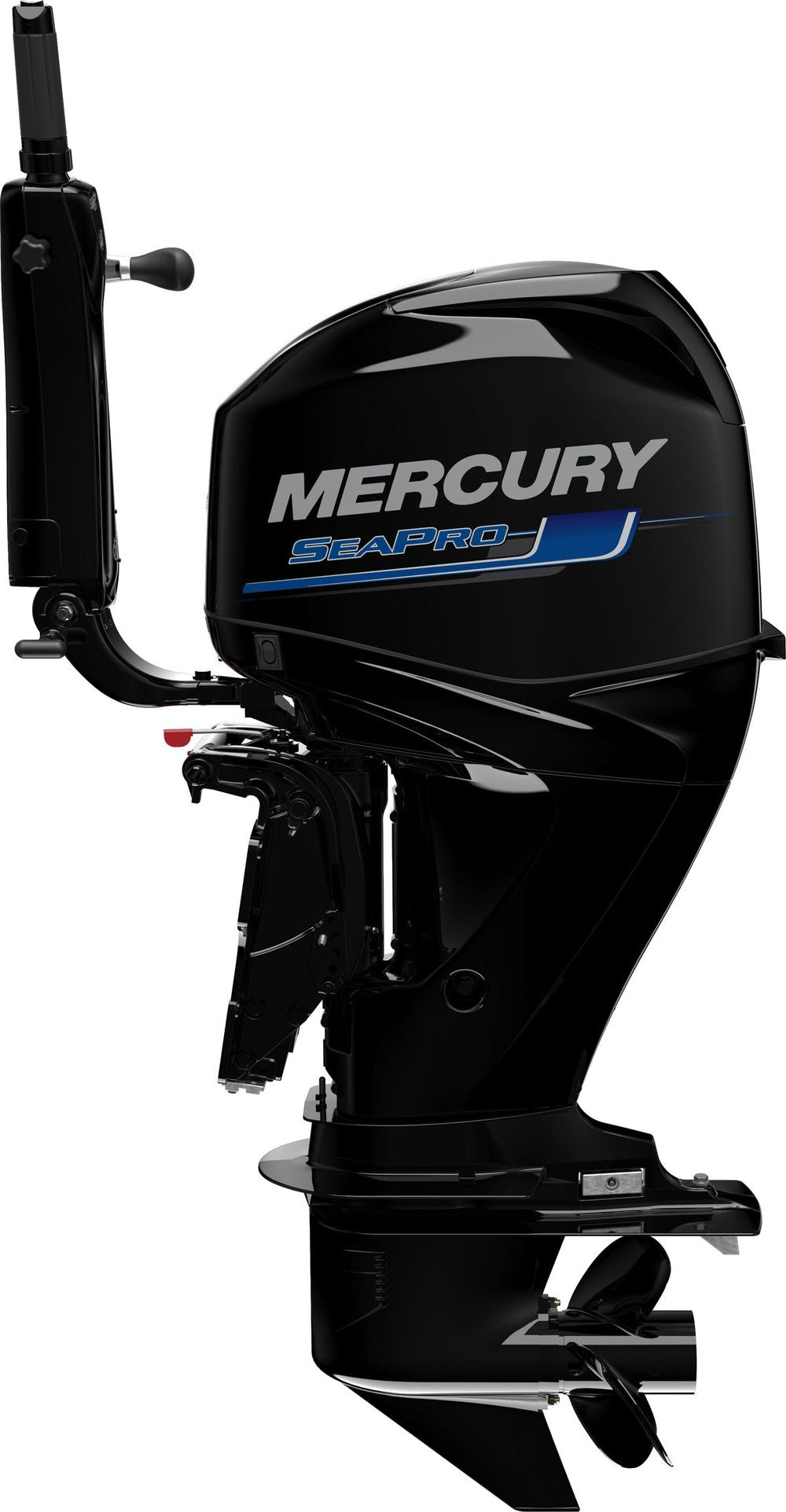

Mercury F40 SeaPro Outboard Motor

4-stroke (F)
29.4 kW / 40 hp
Electric start (E)
Long shaft (L and LL), extra-long shaft (XL)
Hydropneumatic tilt assist (GA)
Power trim (PT)
Big-tiller control handle (BT)
Thrust transmission (CT)
Electronic fuel injection (EFI)

Built for commercial applications
The durable, easy-to-maintain SeaPro commercial engines ensure reliable starts every season with improved fuel efficiency and protect against fuel quality issues. They are calibrated to achieve maximum torque at lower RPMs, providing more power with less engine strain. Faster planing – longer on the water at lower speeds.

A compact, single overhead camshaft and a long stroke provide more torque in the lower RPM range and thus strong performance, even when pushing heavy loads. For commercial fishing boats, commercial workboats, and police boats.

Technical specifications:
Power: 30 kW / 40 hp
Engine type: Inline 4, overhead camshaft with eight valves (SOHC)
Midsection: Conventional midsection
Displacement: 995 cc
Cylinders: 4
Full-load speed: 4500-5500 RPM.
Air intake: High-performance scroll intake manifold
Fuel intake system: Computer-controlled, electronic multi-port fuel injection (EFI)
Alternator: 18 A / 226 W
Recommended fuel: Unleaded regular gasoline, minimum 87 octane or 90 RON, maximum 10% ethanol
Recommended oil: NMMA certified FCW SAE 25W-40
Engine protection boat driver warning system: SmartCraft Engine Guardian
Compatible with SmartCraft digital technology: Yes
Starting: Electric (turn-key)
Controls: Mechanical throttle and clutch
Steering: Big Tiller, remote control
Shaft length: 508 mm, 572 mm, 635 mm
Dry weight *lightest available model: 118 kg
Ignition: Digital inductive control unit SmartCraft ECM 07
Cooling system: Water-cooled with thermostat
Transmission: F-N-R
Trim system: Gas assist available, tilt range, power trim
Reverse: No
Color: Phantom Black
Lubrication system: Wet sump
Oil capacity: 2.8 l
