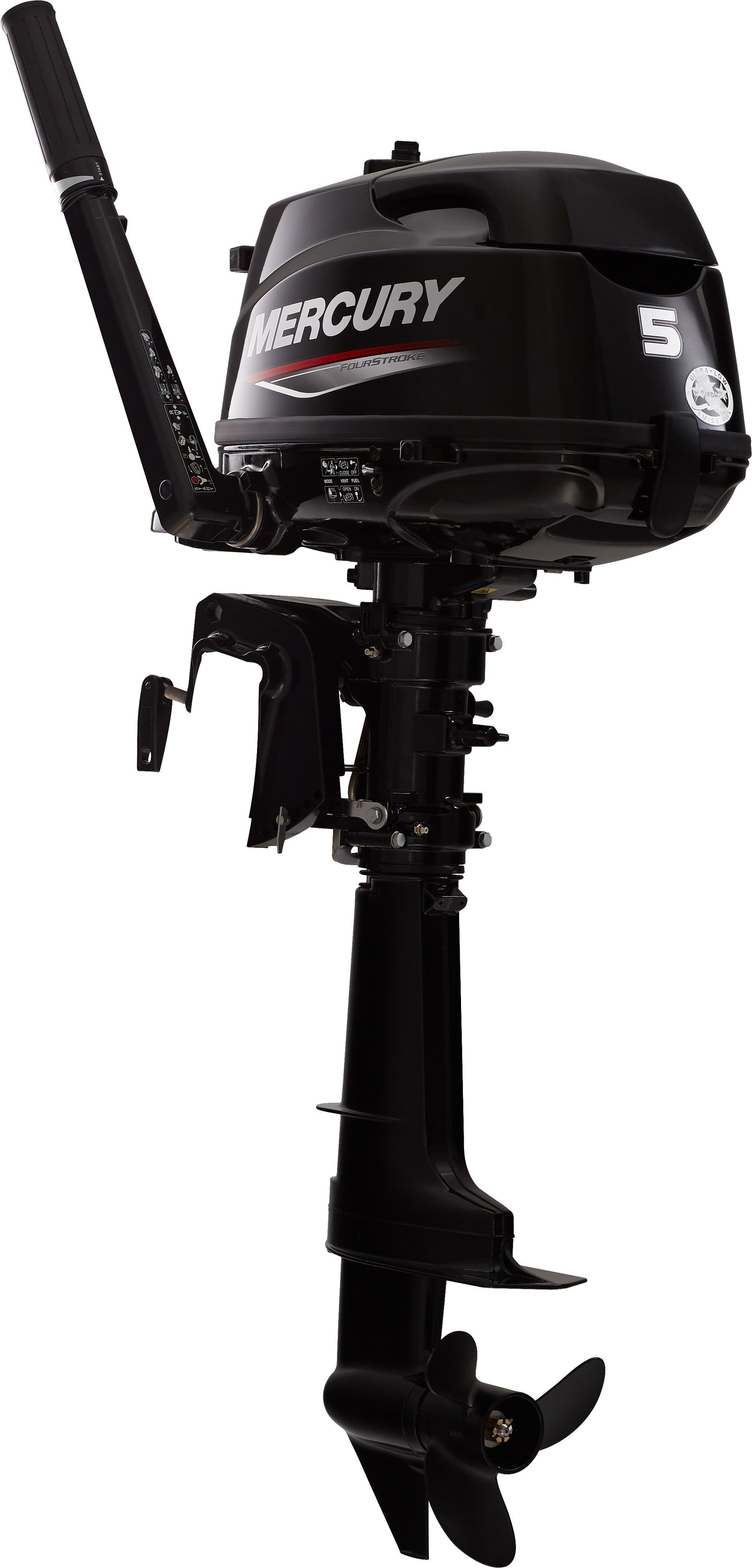

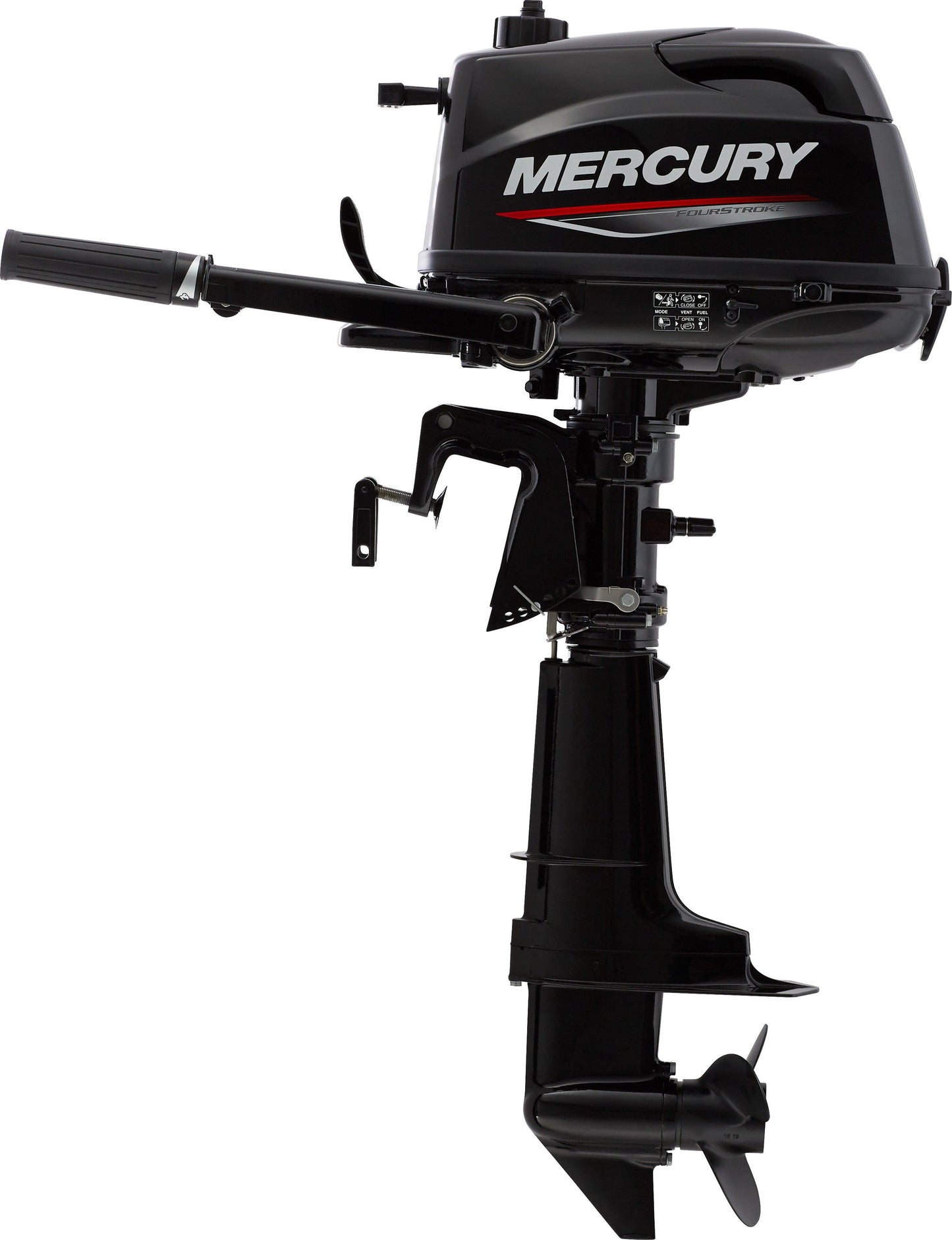

Mercury F5 Outboard Motor

4-stroke (F)
3.68 kW / 5 HP
Hand-start (M)
Long shaft (L), Extra-long shaft (XL)
Standard steering pin (H)

For outboards in this power range, weight and easy, convenient carrying are important. The Mercury 2.5-6 HP four-strokes are among the lightest outboards in this class. However, a light weight and affordable price are not enough. Every portable Mercury four-stroke is packed with features, from the automatic reverse lock to the convenient integrated fuel tank. These four-strokes undergo the same corrosion-resistance processes as our higher-horsepower products. Quality manufacturing, supported by the largest and best-trained dealer network, as well as the industry's best dealer support and spare parts delivery systems. It is no wonder that boat owners worldwide trust our portable four-strokes.

Packed with features
These small outboards are packed with features. From multi-trim for shallow-water positions (on our F 4 - F 5 - F 6 models) to steering pins with 360° steering (on our F 2.5 - F 3.5 models), you will always find the power and versatility you need to handle any situation. Easy starting thanks to the automatic decompression system, which reduces cylinder pressure during the starting process, requiring significantly less force when starting.

Lightweight champion
Thanks to the low weight and the conveniently positioned large handle for easy transport, powering your boat is no problem. And since these lightweight outboards are subject to our strict testing standards, you also get the same reliability you expect from all Mercury outboards.

Reliable starting
Thanks to an automatic decompression function, the cylinders are reduced in pressure to reduce the pulling force required to start.

Integrated or external fuel tank
The Mercury F 4, F 5, and F 6 four-stroke engines have integrated fuel tanks with an external shut-off valve, as well as a filler neck in the engine cover. On these engines, it is possible to connect an external fuel tank mounted in the boat to increase the range.

Shallow water
Variable trim positions improve performance and enable operation in shallow water.

Technical data:

Power: 3.7 kW / 5 HP
Full-load speed range: 4500- 5500
Idle speed: 1100 rpm in gear - 1300 rpm at idle
Number of cylinders: 1
Displacement: 123 cm³ (7.51 cid)
Cylinder bore: 59 mm (2.32 in.)
Stroke: 45 mm (1.77 in.)
Recommended spark plug: NGK DCPR6E
Gearbox oil capacity: 195 ml
Gear ratio: 2.15:1
Bore and stroke: 59 x 45 mm
Gearbox housing options: Standard or SailPower
Fuel system: Carburetor
Fuel tank: 1.1l integrated + optional
Recommended fuel: Unleaded regular gasoline (ideal min. 91 RON, acceptable 95 RON)
Fuel intake system: 2-valve pushrod (floater valve)
Engine oil capacity: 450 ml
Recommended oil: NMMA FC-W Four-stroke SAE 10W-30 or Synthetic SAE 25W-40
Transport and storage: Upright or with the steering pin facing down
SmartCraft compatible: No
Starting: Hand-start
Gear shifting: F-N-R
Steering: Pin
Generator: 4A (50W) (ML models only)
Trim positions: 6 + shallow water
Shallow water trim range: 16° degrees
Weight: 25 kg
Shaft length: Short shaft (S, 381 mm), Long shaft (L, 508 mm) or Extra-long shaft (XL, 635 mm)
Counter-rotating gearbox: Not available
Engine protection boat owner warning system: Low oil pressure, overspeed
Cooling system: Water-cooled with thermostat
Exhaust system: Through the propeller
Color: Phantom Black
