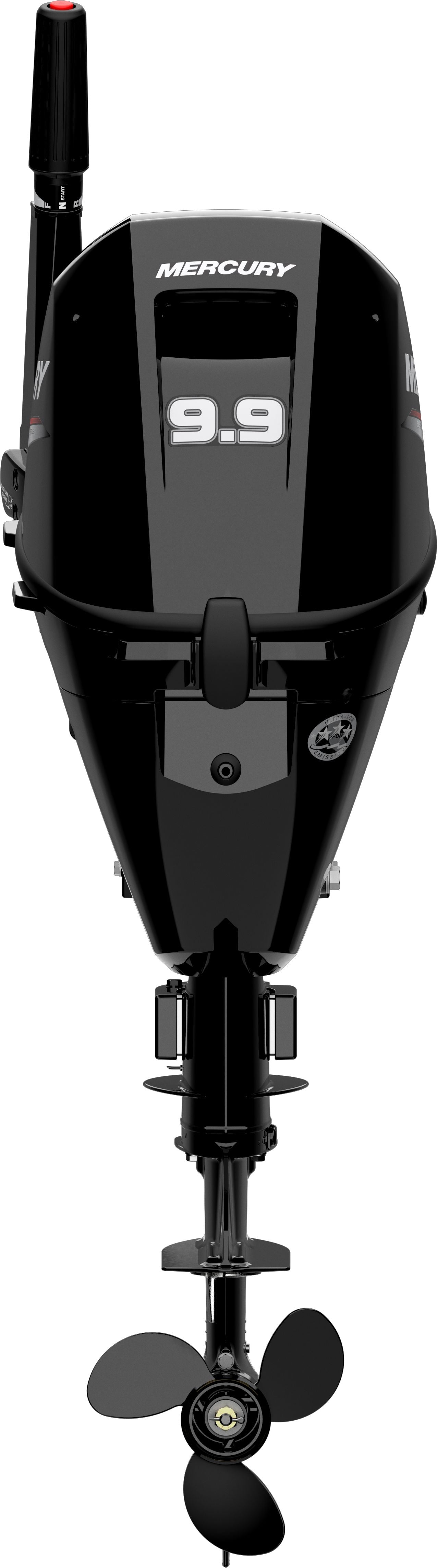

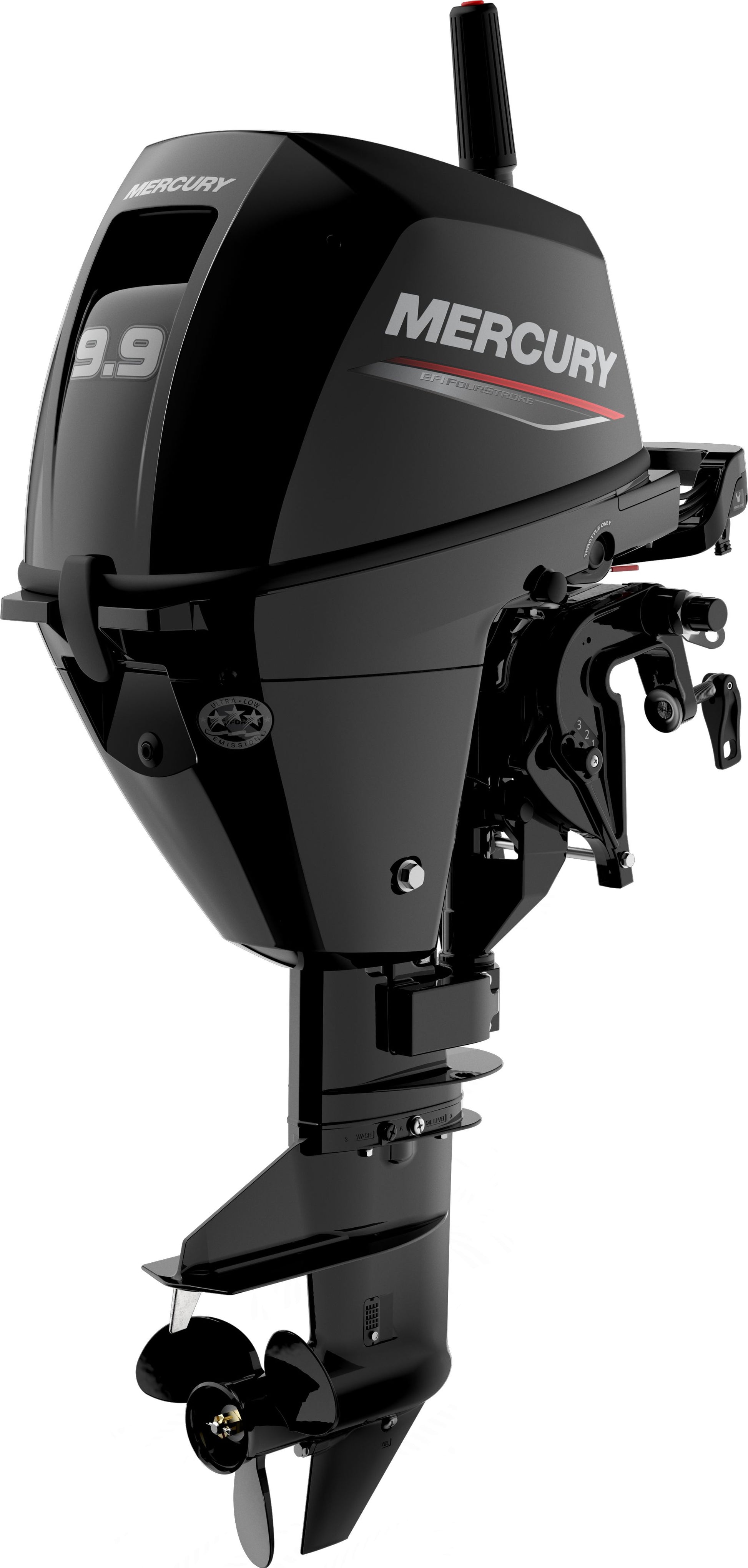

Mercury F9.9 EFI Outboard Motor

4-stroke (F)
7.3 kW / 9.9 hp
Manual start (M), electric start (E)
Long shaft (L), extra-long shaft (XL)
Standard steering pin (H)
Power trim (PT)
Command Thrust (CT)
Electronic fuel injection (EFI)

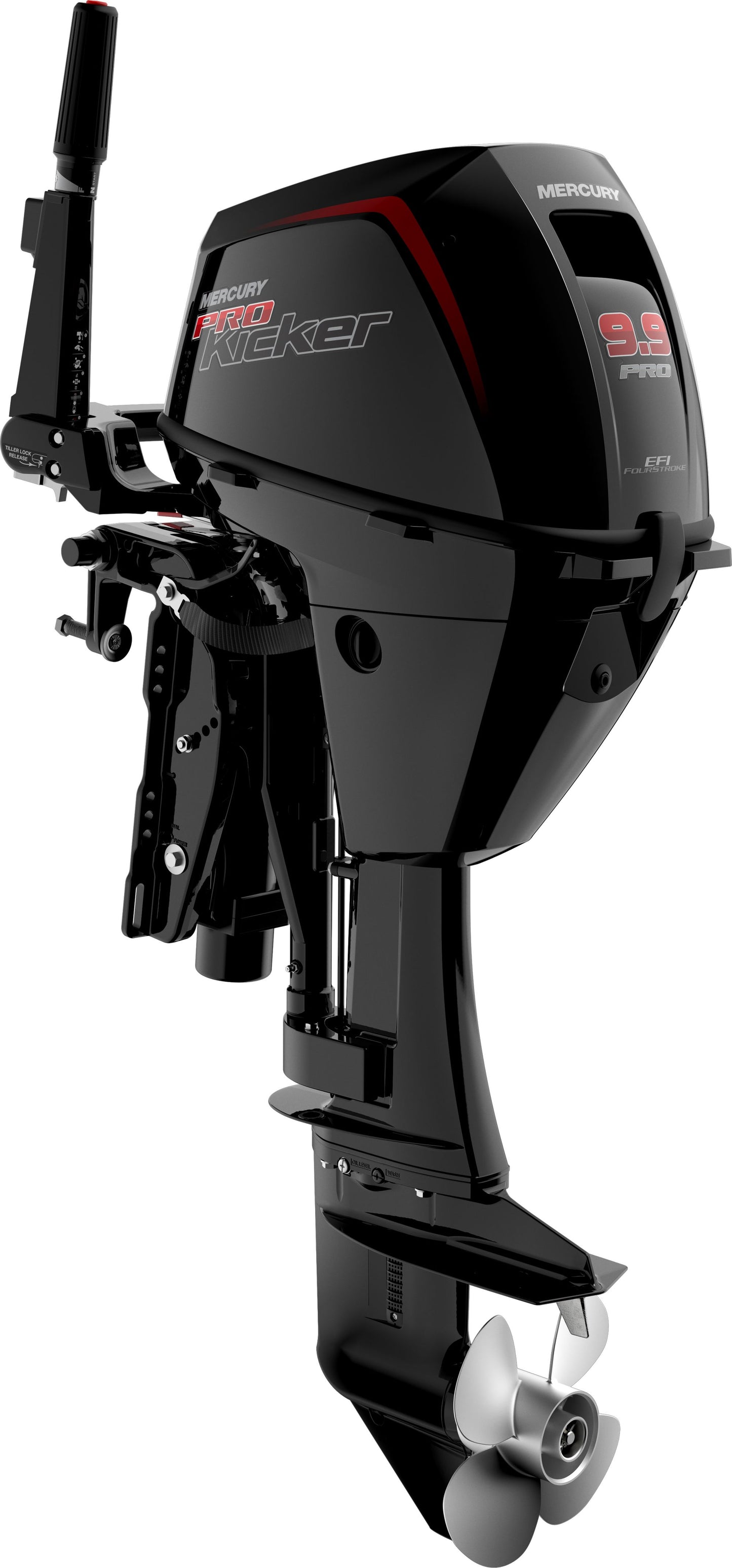

ProKicker: Precise control in difficult conditions

Mercury has revised the current 209cc carbureted platform with 8 and 9.9 hp to incorporate an EFI fuel system, a larger alternator, a newly designed cowling, and other refinements.

EFI advantages:

• Fast, reliable starting
• Improved running quality


Additional advantages:

• EFI fuel system with battery-free manual start

• Lightweight at just 38.5 kg
• Powerful 12 amp / 145 watt alternator
• Improved fuel consumption
• Exclusive bracket for manual tilt device with ratchet function
• Exclusive multifunction pin handle
• Command Thrust - gearbox range (CT at 9.9 hp)
• Top speed and acceleration
• Easy oil change (without filter)
• Excellent corrosion resistance

ProKicker advantage:

• On models with a steering pin, centering straps protect your auxiliary motor when trailering or driving in glide mode with the main outboard. They automatically align the auxiliary motor and lock it when it is fully tilted up.

• Adapt your auxiliary motor to your boat and towing style: with remote controls for operating from the helm or a nearly 58 cm long steering pin, which is ideal for precise towing.

• Whether you want to sit or stand during towing trips, the lower stop angle keeps the pin at the right height so you can steer comfortably. The pin resistance can also be adjusted to maintain speed and keep your hands free.

• Models with electronic fuel injection (EFI) ensure reliable starts and efficient performance in all weather conditions.

Technical data:

Power: 7.4 kW / 9.9 hp
Cylinders: 2
Displacement: 209 cm³
Full-load speed range: 5000-6000 rpm
Idle speed in forward gear: 900-1000 rpm
Intake: 4-valve, single overhead cam (SOHC)
Fuel system: Electronic fuel injection (EFI)
Recommended fuel / fuel: Unleaded Regular 87 octane minimum or 90 ROZ 10% Ethanol maximum
Recommended oil: Mercury FC-W 10W-30 4-stroke marine oil or 25W-40
Synthetic blend
Engine oil capacity: 800 ml
Gearbox oil capacity: 320 ml or 370 ml for CT models
Recommended spark plug: NGK DCPR6E
Engine protection operator warning system: Low oil pressure, overspeed, overheating
Smart-Craft technology: No
Starting: Manual or electric (with manual safety lock)
Steering: Pin or remote control
Shaft length / shaft length: S (381mm) short shaft, L (508mm) long shaft, XL (365mm) extra-long shaft
Gearbox ratio: 2.08:1 or 2.42:1 for CT models
Dry weight: 38.5kg (MRC) / 43.7kg (CT) / 50.3kg (ProKicker)
Bore & stroke: 55mm x 44mm
Ignition: CDI with electronic ignition timing
Cooling: Water-cooled with thermostat
Generator / alternator: 12A (145W) only on E-start models
Shifting: F-N-R
Gearbox housing options: Standard
Trim system: Ratchet in 5 trim positions with shallow water drive and full tilt device / With ProKicker power tilt device
Exhaust / emissions: Through the propeller
Shallow water drive: Standard
Fuel tank: 12 l external, optional on ProKicker
Propeller: 8.5P / on ProKicker 5P 4-blade
Counter-rotating gearbox: Not available
Transport and storage: Upright, with steering pin down or with the front facing down
Color: Phantom Black

Before delivery, we subject every outboard that leaves our house to a pre-delivery inspection (PDI), which is also mandatory by the manufacturers for possible warranty claims. This PDI is, of course, free of charge for the end customer! The PDI includes a full functional check in one of our test pools in all operating conditions. Thus, you can be sure that you receive a fully functional engine. The shipment takes place in the original protective packaging, whereby the engine is transported "dry" and cleaned, i.e., fuels and engine oil are removed from the engine. We, of course, include a sufficient amount of new engine oil for refilling with every engine. You can find filling instructions in the user manual, which is included in the delivery. If you have any questions, you can contact our service team at any time at +49 (0)89 - 7489080.
