Torqeedo

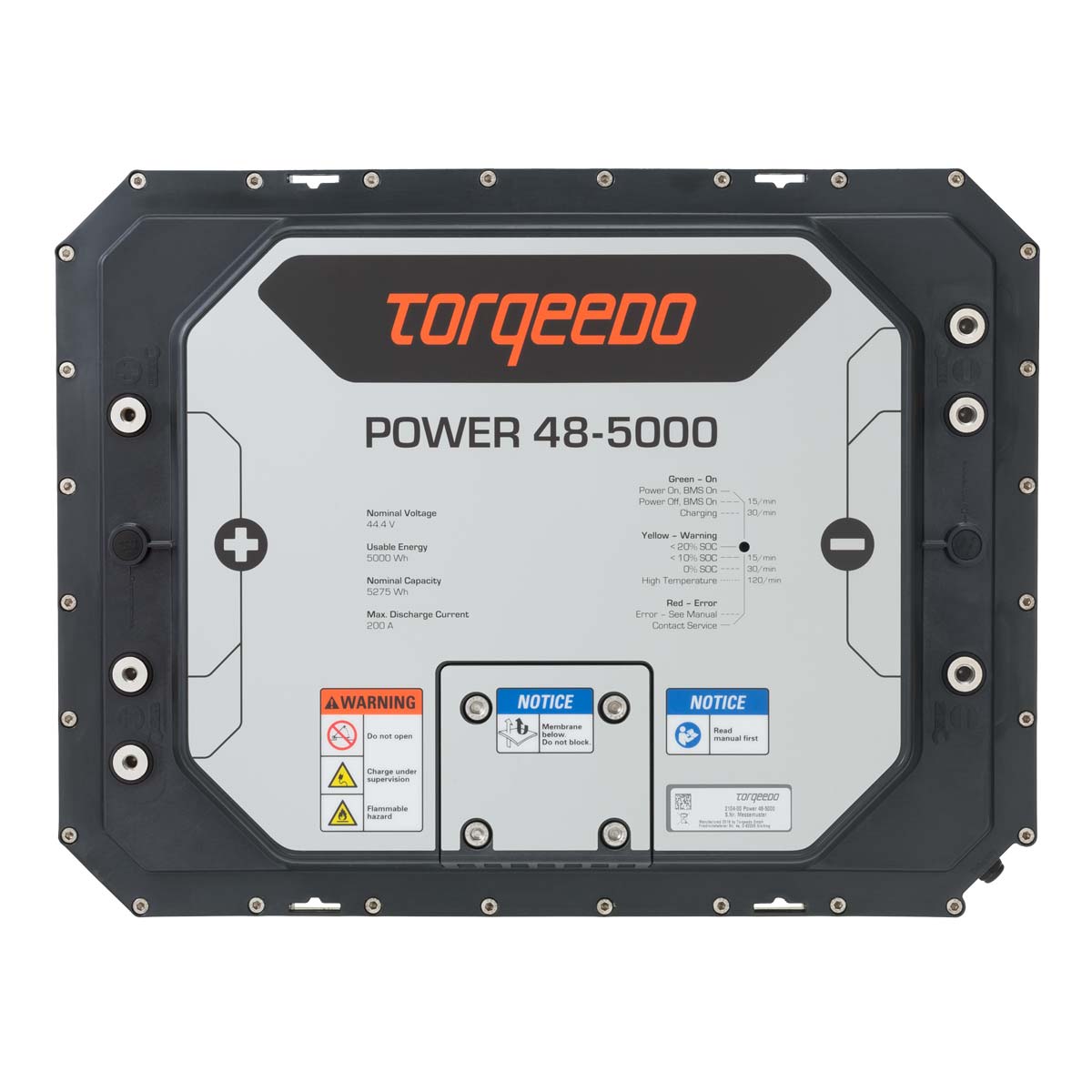

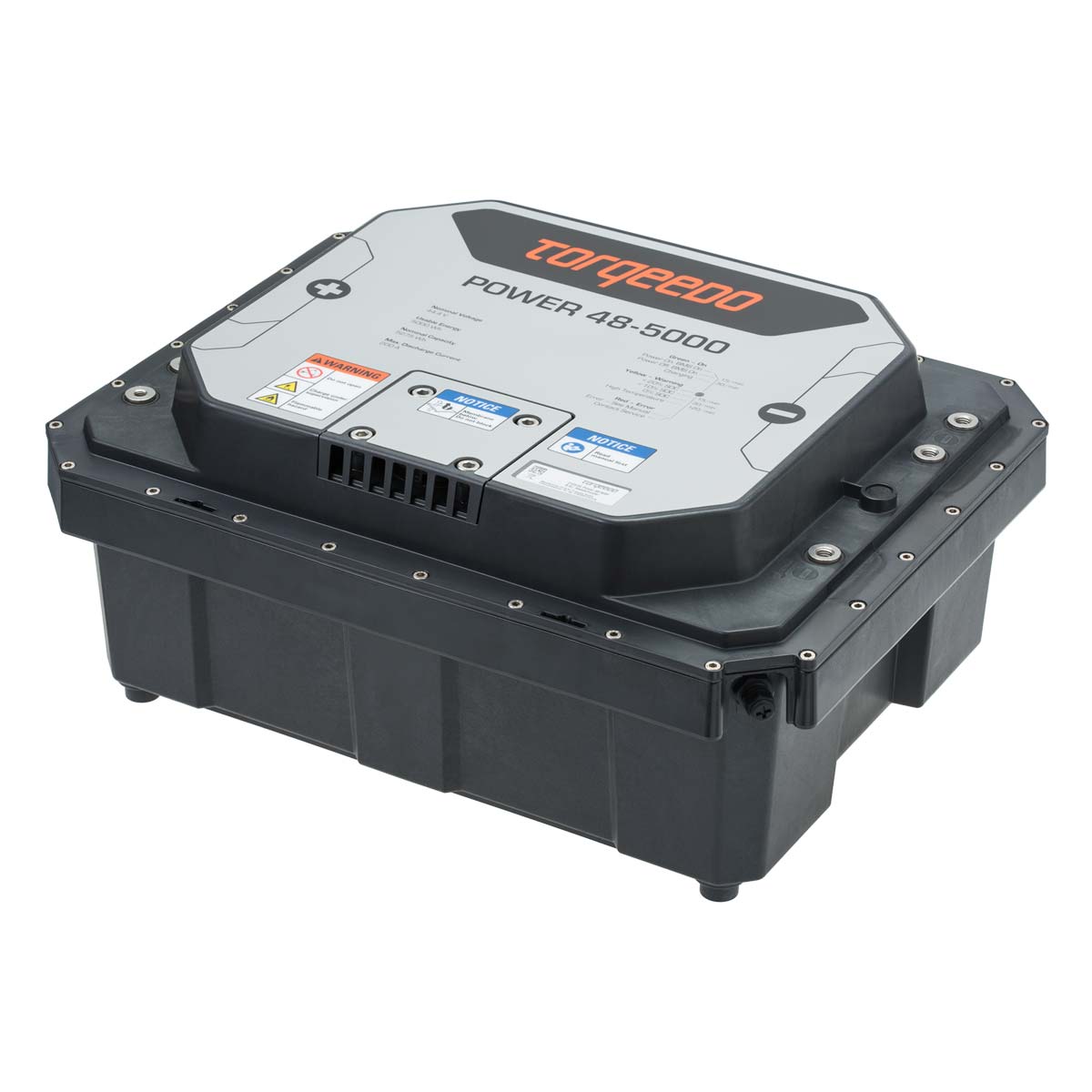

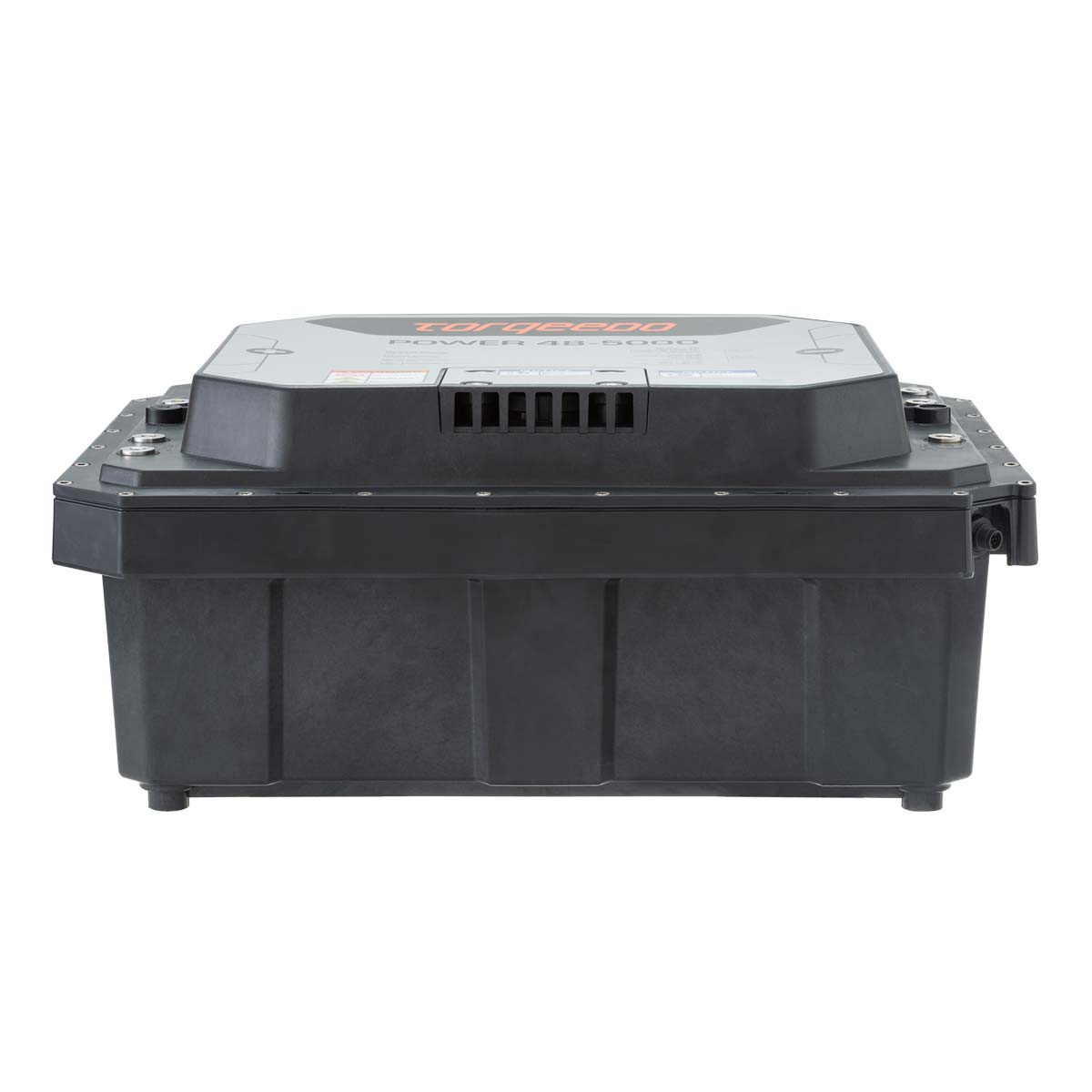

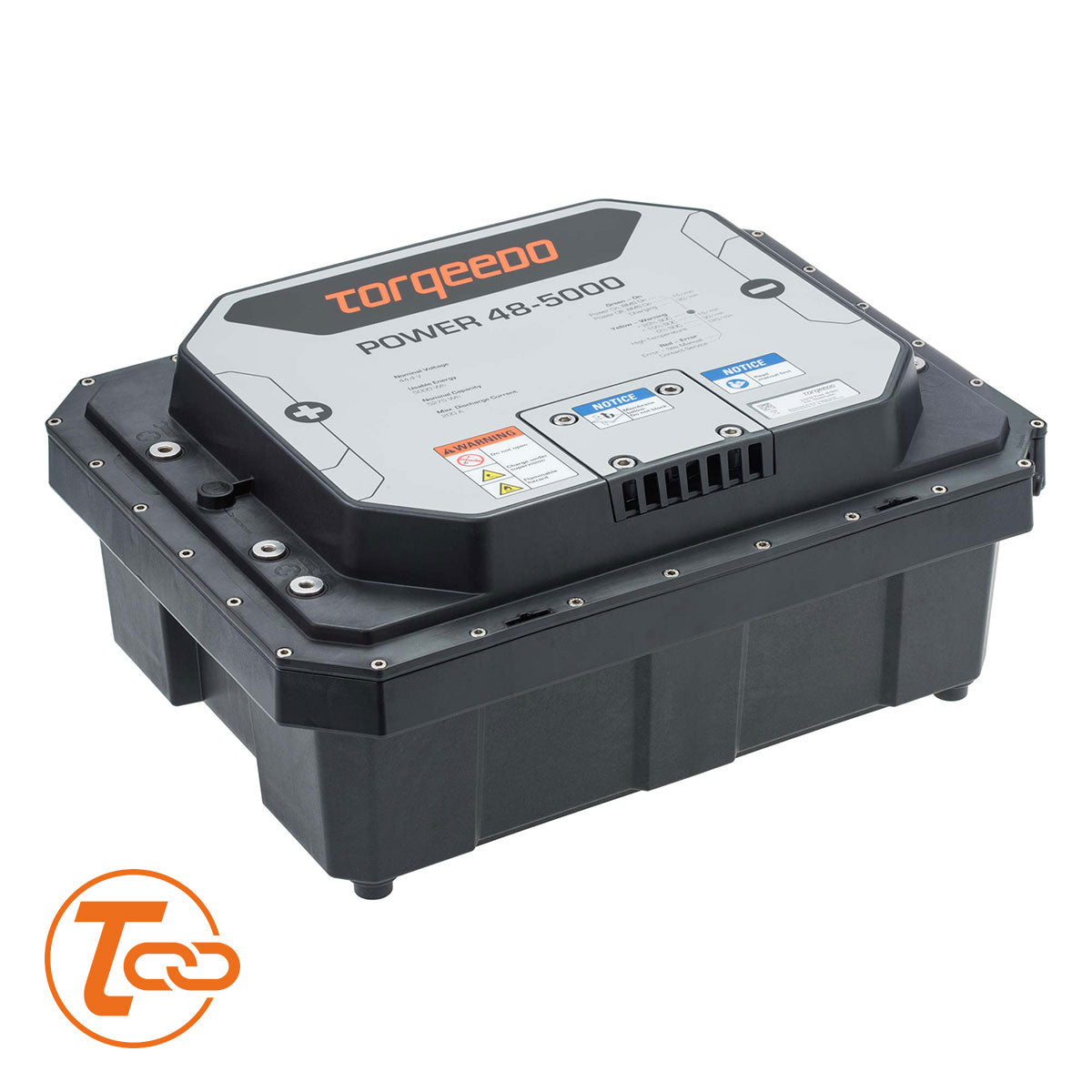

Torqeedo Power 48-5000 Battery

Torqeedo Power 48-5000 Battery

€4.246,00
€4.470,15 €4.246,00
Sale Sold out
Taxes included. Shipping calculated at checkout.

In stock

  • Torqeedo authorized dealer and service partner since 2006
  • Fast shipping and large inventory
  • We are experts in converting to electric.

TOR-2104-00

  • Lithium high-performance battery 5,000 Wh
  • Nominal voltage 44.4 V
  • Weight 36.5 kg
  • Includes battery management system with integrated protection against overcharging, short circuits, deep discharge, reverse polarity, overheating and submersion, safety vent
  • Extremely robust construction
  • Waterproof IP67

A class of its own among lithium batteries for boats: 70% higher energy density and 50% longer service life than typical lithium LiFePO4 batteries.

With the Power 48-5000, Torqeedo is bringing a new class of lithium batteries to market. Based on automotive technology and BMW i battery modules, the Power 48-5000 sets a new, distinct class standard with the combination of very high energy density, long service life, compliance with the latest ISO standards and cost efficiency.

TorqLink is Torqeedo's advanced electronic communication system, which was developed for Deep Blue and is now available for selected Cruise motors, throttle controls and Power 48-5000 batteries. All products marked with TorqLink communicate seamlessly with each other upon startup. A TorqLink Gateway (2217-00) allows you to integrate components without TorqLink into your system.

Technical specifications Power 48-5000

General features
Capacity   5275 Wh nominal 5000 Wh usable
Nominal voltage   44.4 V
Cut-off voltage   36.0 V
Nominal charge   N/A
Maximum discharge current   200 A
Maximum power at nominal voltage   8,800 W
Weight   36.5 kg
Dimensions (L x H x W)   506 mm x 224 mm x 386 mm
Volume   31 l
Battery chemistry   LMO-NMC



Performance data for comparison
Energy density (weight)   145 Wh/kg
Energy density (volume)   160 Wh/l
Price-performance ratio   1.00 EUR/Wh
Power density (weight)   250 W/kg
Power density (volume)   280 W/l
Service life data
Cycle life   >3000 cycles at 80%
depth of discharge at 25°C		 lead to approx. 20% capacity loss
Calendar capacity loss per year   approx. 4% at 25°C ambient temperature

Usage information
Ambient temperature, discharging   -10°C to +50°C
Ambient temperature, charging     0°C to +45°C
Ambient temperature, storage   -25°C to +60°C
Typical storage times at 50% SOC   1 year Without guarantee
Max. connections   1S1P or 1S2P
Max. fast charging rate   120 A
Protection class   IP67 Waterproof, can be submerged in 1 meter of water for 30 minutes without damage
