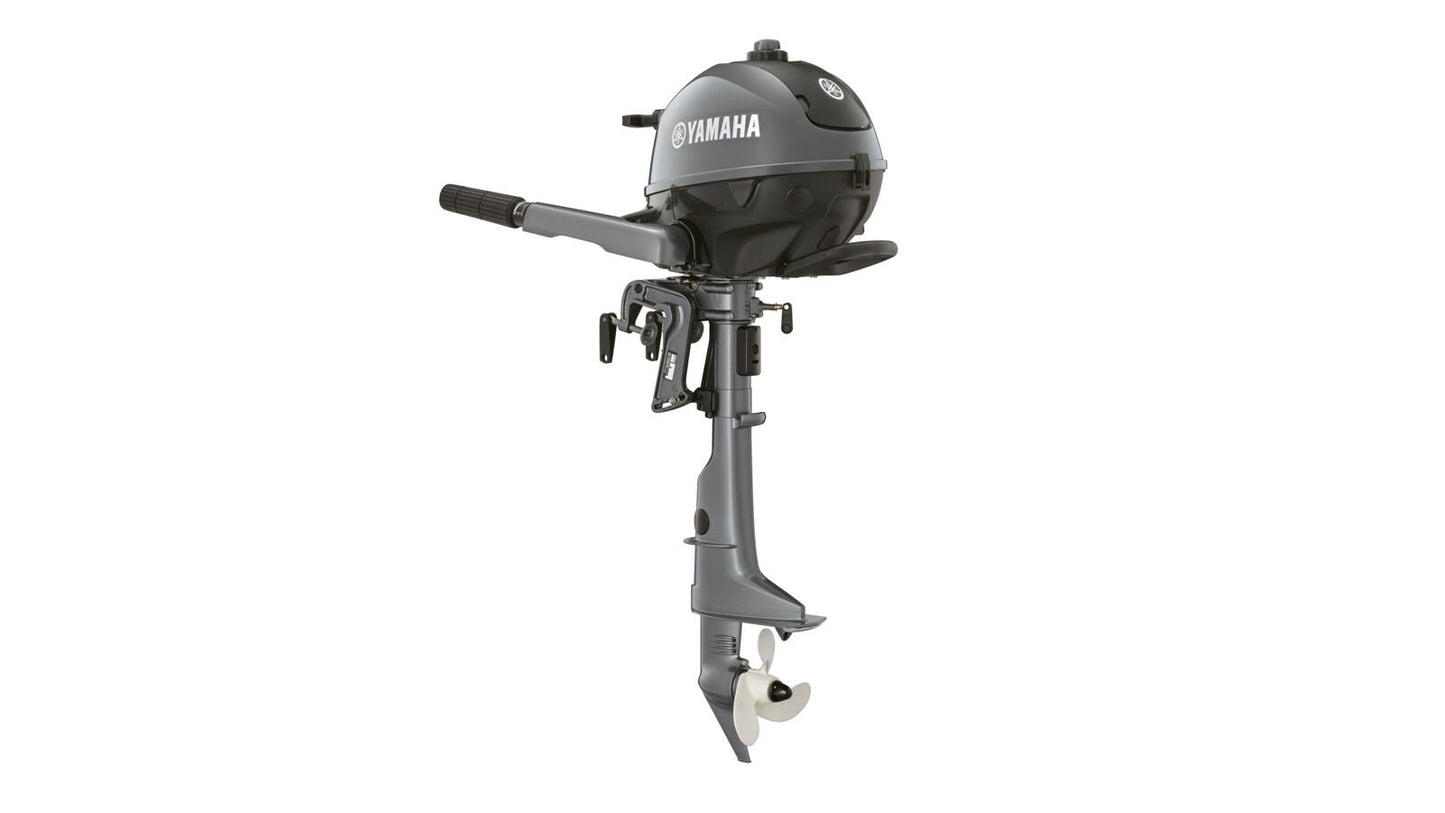

Yamaha F2.5B Outboard Motor

4-stroke (F)
1.8 kW / 2.5 hp
Engine generation (B)
Hand starter (M)
Pin steering (H)
Short shaft (S), Long shaft (L)

The Yamaha F2.5 to F6 models are the only four-strokes that can be tilted on 3 (steering, port, and front) sides without oil leaking out!

Small engine, great qualities: The easy-to-use 2.5hp can be transported with ease and is ideal for making every boat trip an unforgettable adventure. In addition, it offers unique handling and maneuvering characteristics – with quiet, low-vibration, and clean operation.
The compact outboard also features many other top features such as intuitive controls, an integrated transparent fuel tank, a large carrying handle, and various practical storage positions.

Details:

• Better combustion and lower emissions.
• No more oil leaks! System allows safe storage and transport on three sides.

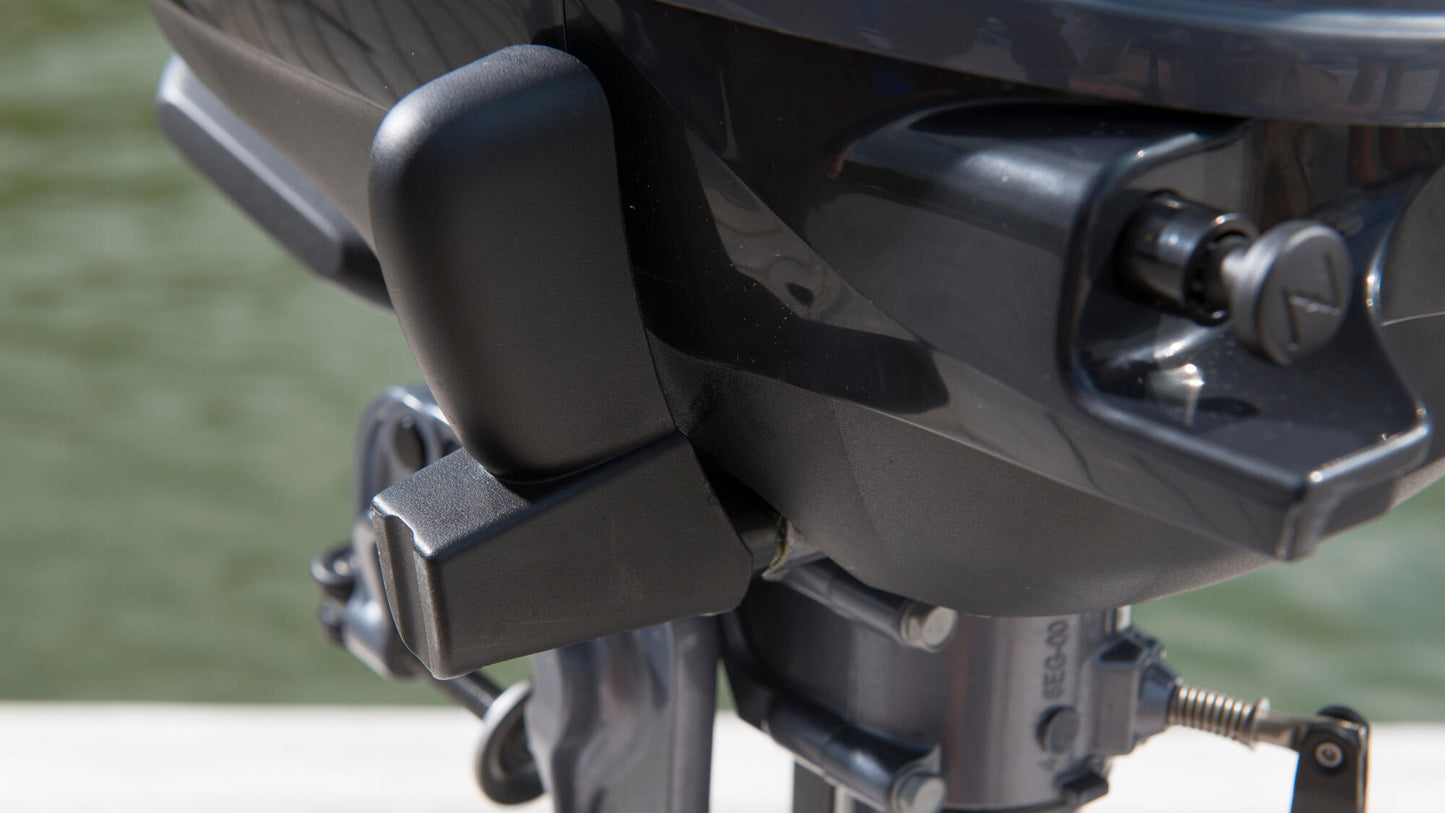

• Large shift lever for easy gear selection.
• Easy control with F-N shifting (Forward – Neutral).
• The 360° steering makes maneuvering a real pleasure.

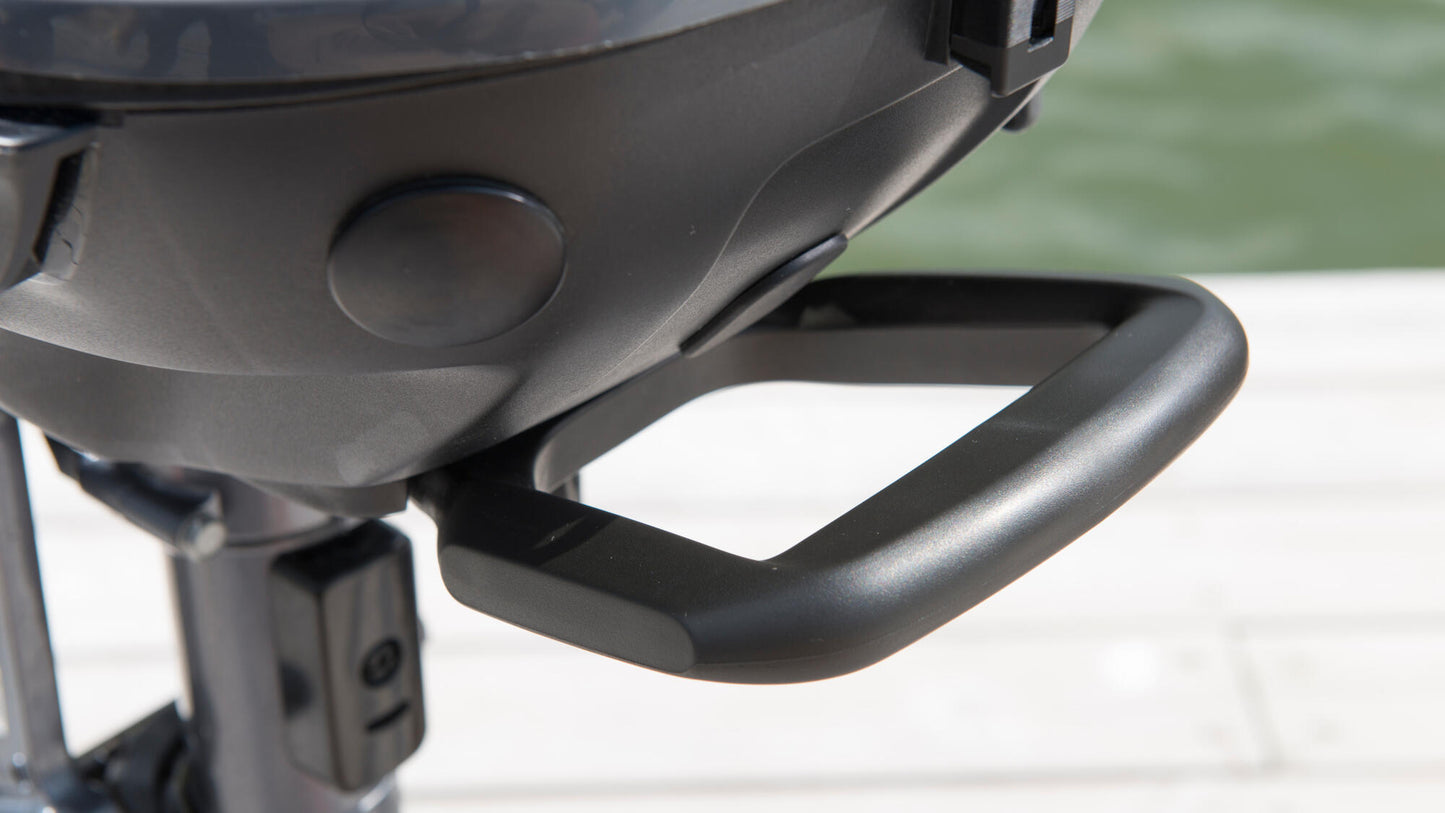

• Large, comfortable carrying handle on the back.

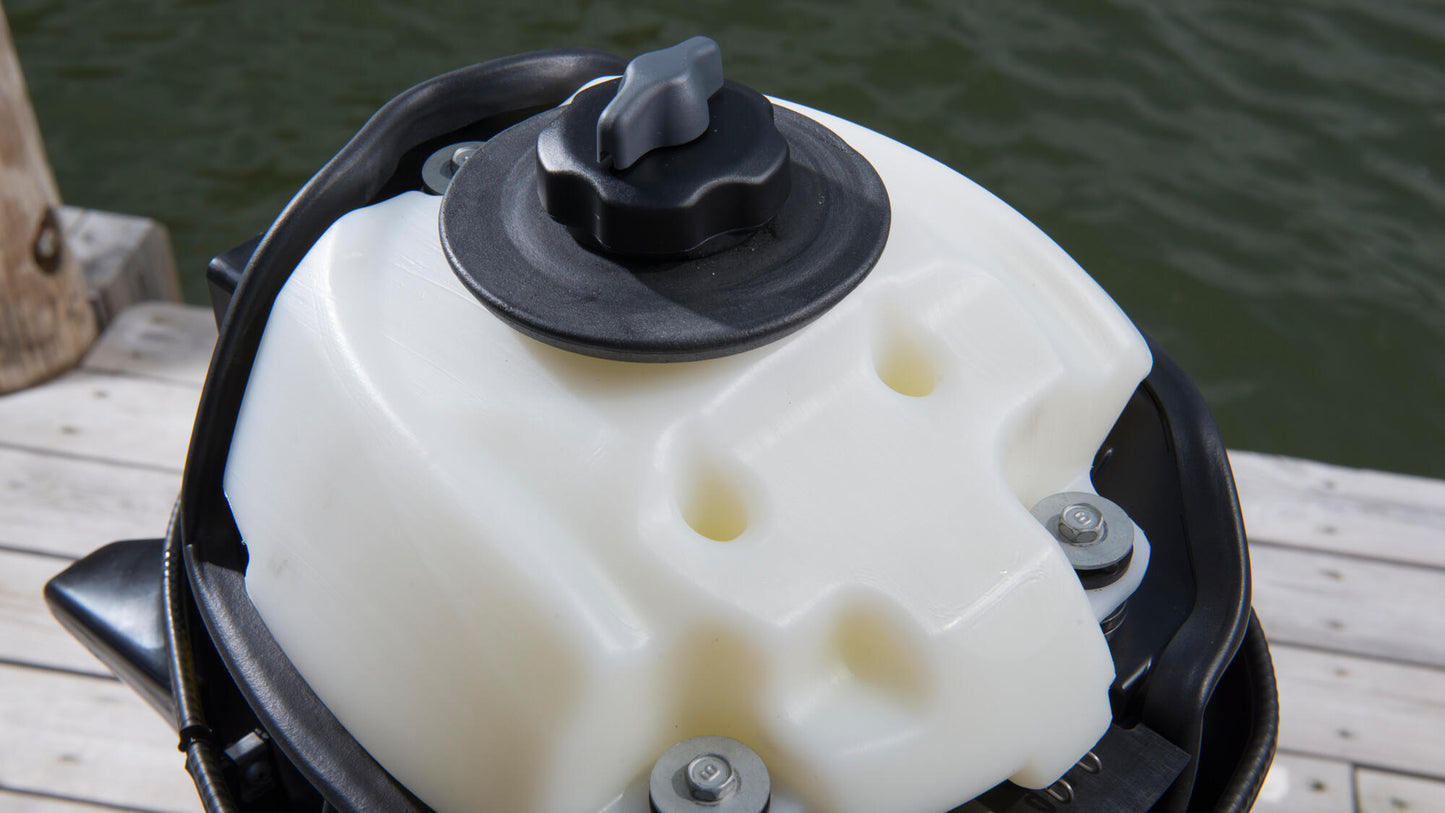

• Integrated transparent fuel tank for added convenience.

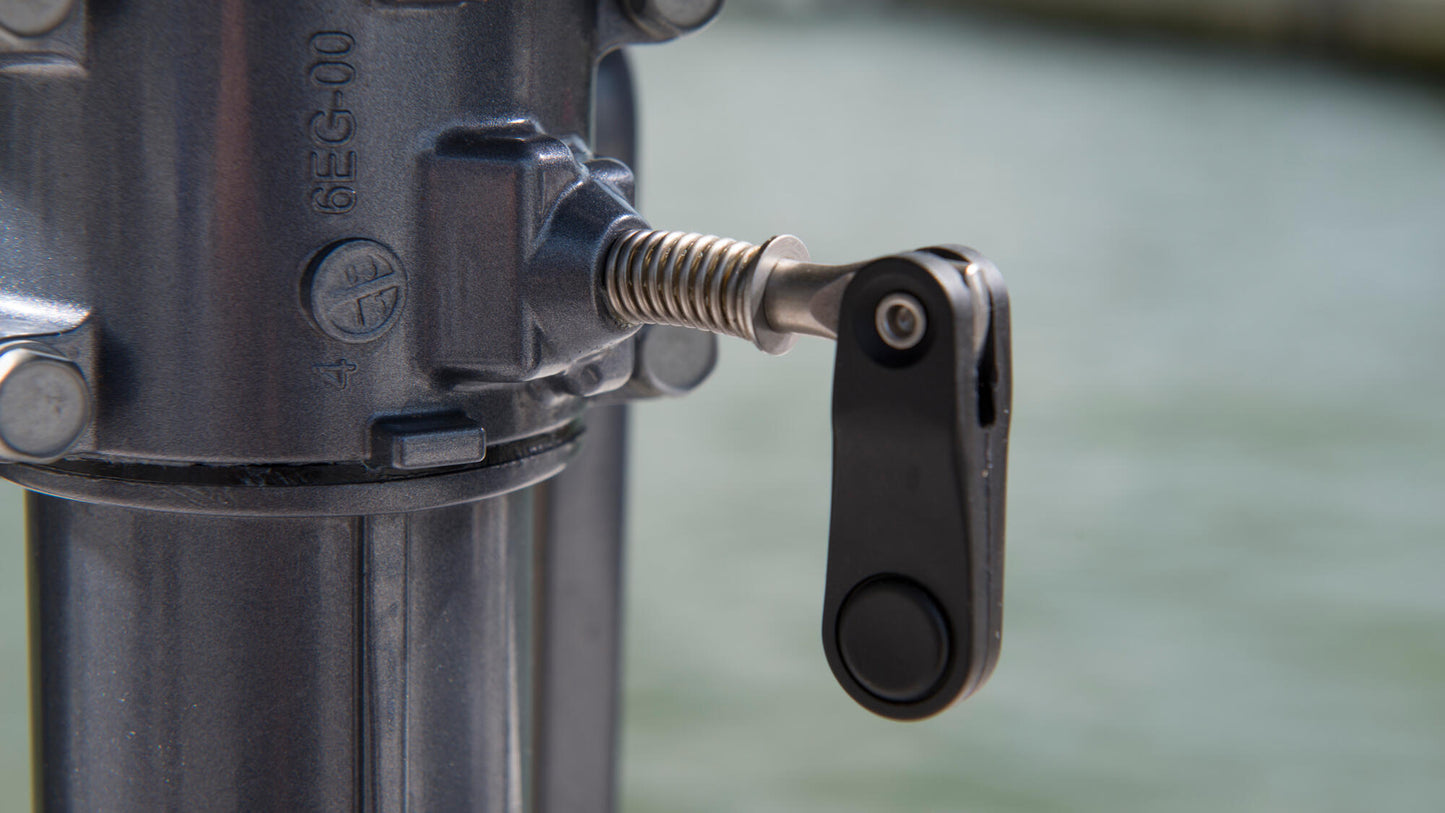

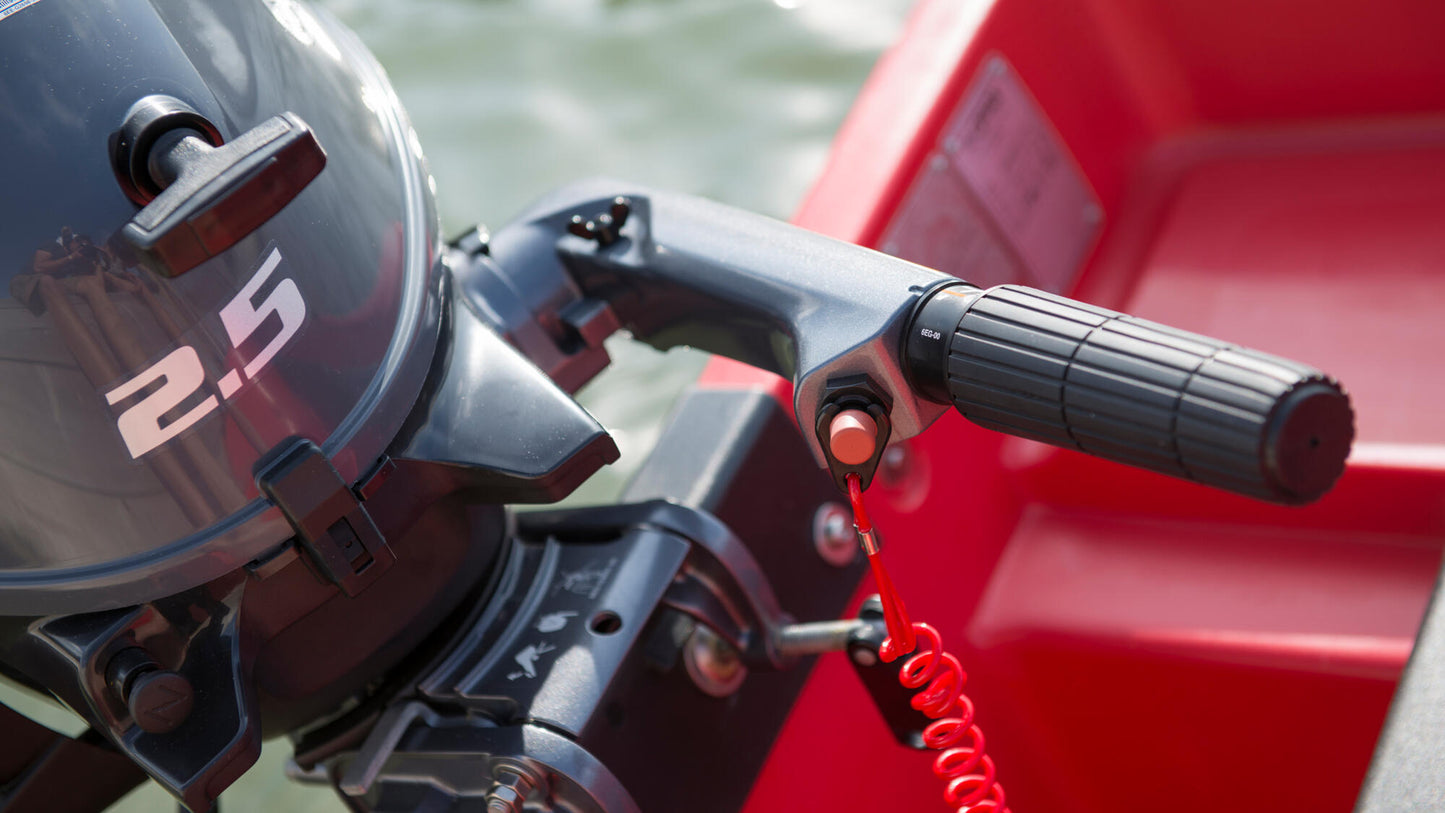

• Robust steering pin with easy-to-turn throttle knob.
• Excellent maneuverability thanks to adjustable steering resistance.
• Viewing window allows for easy oil checks.
• High reliability thanks to TCI ignition.
• Automatic decompression for easy starting

Technical Data
Engine data: Four-stroke - 72 cm³ - OHV - 1 cylinder
Power - propeller shaft: 1.8 kW/2.5 hp - 5,500 rpm
Full throttle speed (rpm): 5,250-5,750
Fuel injection: Carburetor
Lubrication: Splash lubrication
Crankcase capacity: 0.35 l.
Fuel tank capacity: 0.9 l.
Ignition: TCI
Starting system: Manual/Choke
Throttle/Shift control: Throttle: on steering pin/Shift: side
Steering: 360° swiveling
Gear ratio: 2.08 (27/13)
Tilt system: Manual - 4 positions
Dry weight incl. propeller: S 17 kg / L 18 kg
